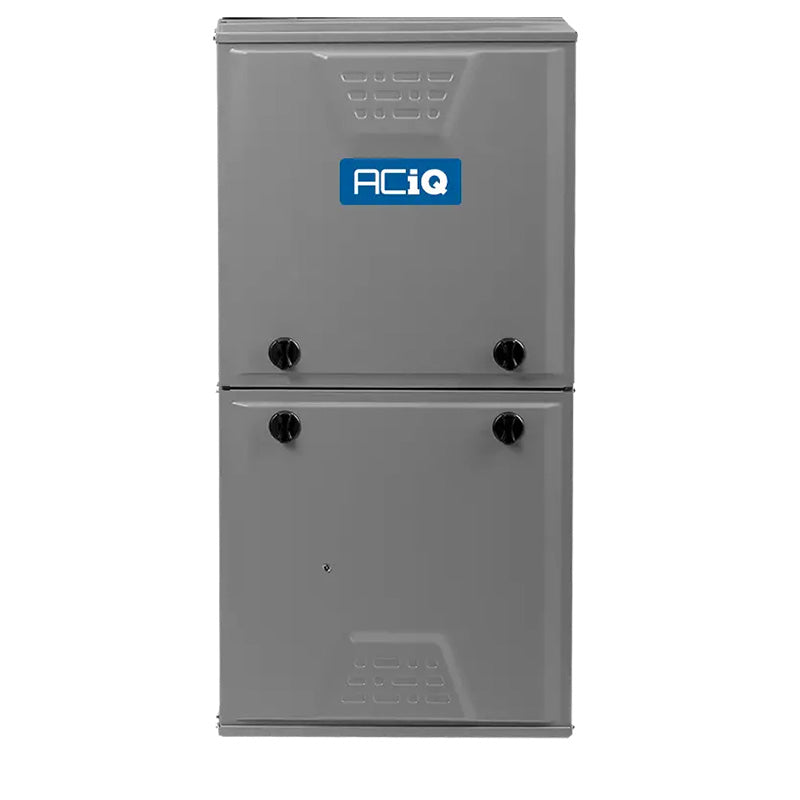

ACiQ 40000 BTU Gas Furnace - 96% Two Stage Variable Speed Multi-Positional (G96VTN0401410A)

G96VTN Overview

Features

• Up to 96% AFUE in upflow and horizontal positions 95% AFUE in downflow position
• Two-stage heating operation
• Variable-speed, constant torque ECM blower
• Supports single-stage and two-stage cooling units
• Dehumidification feature in cooling
• Can be installed in air quality management districts with a 40 ng/J NOx emissions requirement.
• Cabinet air leakage less than 2.0% at 1.0 in. W.C. and cabinet air leakage less than 1.4% at 0.5 in. W.C. when tested in accordance with ASHRAE standard 193

Tougher

• Flame roll-out sensors standard
• Adjustable heating blower OFF delay
• Factory set blower ON delay
• RPJ® primary heat exchanger
• Stainless steel secondary heat exchanger
• High temperature limit control designed to prevent overheating
• Direct ignition with Silicon Nitride igniter

Quieter

• Operates quieter at lower heating rates
• Two-speed induced draft combustion blower
• Variable speed, constant torque ECM blower motor
• Fully insulated steel cabinet

Easier To Install And Service

• Direct vent (2-pipe), single-pipe venting or ventilated combustion air
• Electronic Air Cleaner and Humidifier terminals
• 35” (889mm) high, for ease of installation
• Quarter turn knobs for easy door removal and secure attachment
• Convertible to propane with gas conversion accessory kit
• Four position - upflow/downflow/horizontal (left/right) installation
• Twelve different venting configurations
• Through the casing flue pipe for counterflow or horizontal applications with accessory (order separately)
• Concentric vent available
• Slide out heat exchanger assembly and blower assembly
• Twinning capable (model sizes 0601714, 0801716, 0802120, 1002120, 1202422)
• 5 ton sizes (0802120, 1002120) allow 15 Amp breaker with accessory (order separately)
• Compatible with 24V thermostats
