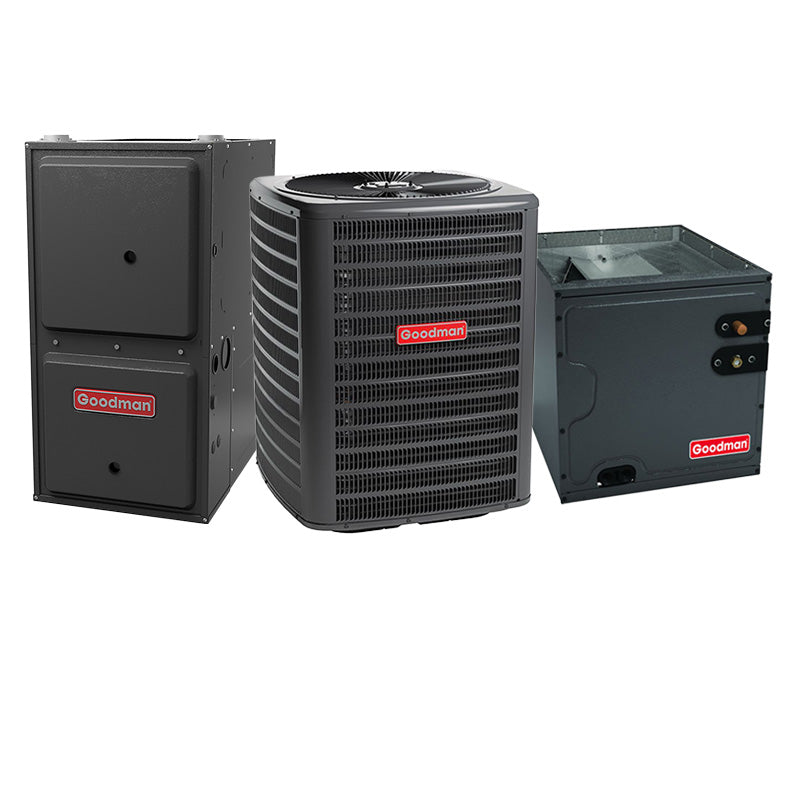

Goodman 2 Ton 15.2 SEER2 AC & Gas Furnace System – Multi-Speed, 60000 BTU Gas Furnace, 92% AFUE, Horizontal, R32

GLXS5B Overview

Standard Features

• High-Efficiency Scroll Compressor
• Factory-installed filter drier
• Fully charged for 15' of tubing length
• 5mm diameter copper tube/ enhanced aluminum fin coil
• Factory-installed filter drier
• Sweat connection service valves with easy access to gauge ports
• Enclosed contactor
• High-pressure switch
• Ground lug connection
• Capacitors with extended life
• AHRI Certified
• ETL Listed

Cabinet Features

• Removable grille-style top design compliant with UL 60335-2-40
• Venturi for increased velocity of airflow
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Wire fan discharge grille
• Steel louver coil guard
• Top and side maintenance access
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

GR9S92 Overview

Standard Features

• Heavy-duty aluminized-steel tubular heat exchanger
• Stainless-steel secondary heat exchanger
• Single-stage gas valve
• Durable Silicon Nitride igniter
• Multi-speed ECM blower motor
• Quiet single-speed induced draft blower
• Self-diagnostic control board
• All models comply with California 40 ng/J Low NOx emissions standard
• Can not be installed in California’s South Coast AirQuality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD).
• AHRI Certified; ETL Listed

Cabinet Features

• Designed for multi-position installation — GR9S92: upflow, horizontal left or right
• Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
• Easy-to-install top venting with optional side venting — GR9S92/upflow models only
• Convenient left or right connection for gas and electrical service
• Cabinet air leakage (QLeak) ≤ 2%
• Heavy-gauge steel cabinet with durable finish
• Foil-faced insulated heat exchanger cabinet
• Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications

Goodman CHPTA3026B3 Horizontal Coil – 2.5 Ton, 17.5" Cabinet

Reliable comfort for mid-sized systems

The Goodman CHPTA3026B3 is built for 2.5-ton residential systems and comes in a 17.5-inch cabinet, making it versatile for horizontal installations. Its durable coil and TXV design provide precise performance and efficiency.

With Goodman’s rugged cabinet design, this coil is built to withstand long-term use while delivering reliable comfort.

Features & Benefits

• 2.5 Ton nominal capacity
• 17.5" cabinet width
• All-aluminum coil design
• Factory-installed TXV for efficiency
• Optimized for R-32 refrigerant systems
