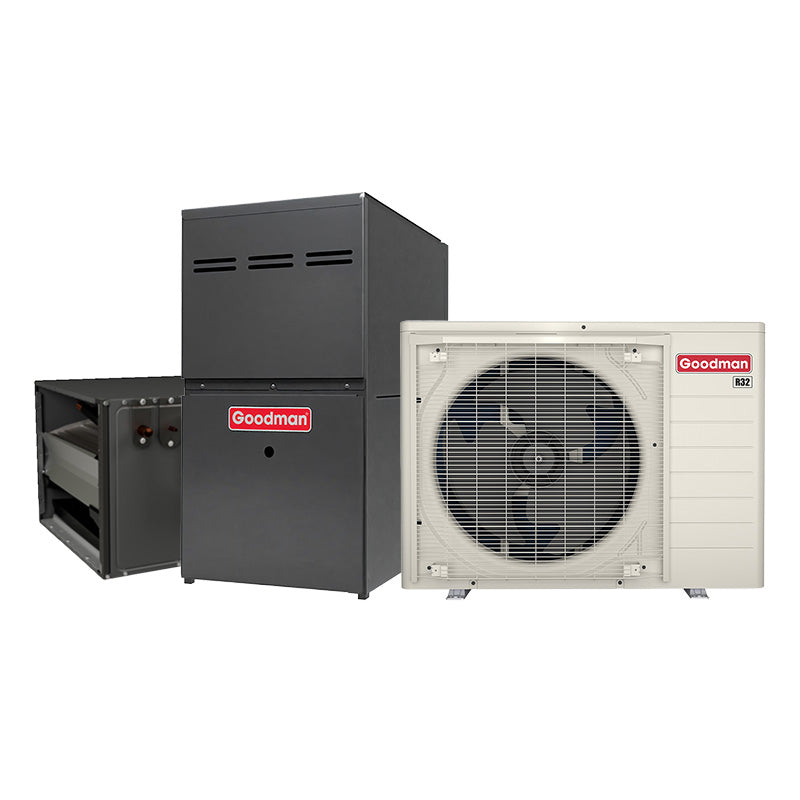

Goodman 2 Ton 19 SEER2 Variable-Speed Inverter AC & Gas Furnace System - 60,000 BTU 80% AFUE Variable-Speed Ultra-Low NOx Horizontal Gas Furnace, California & Colorado Compliant, R32
-
Condenser
1 × Goodman 2 Ton Up to 19 SEER2 Variable-Speed Inverter Side Discharge AC Condenser, R32 (GXV9SA2410)
$5,236.82$4,516.76$5,236.82$4,516.76 -
Gas Furnace
1 × Goodman 60000 BTU 80% AFUE Gas Furnace Single Stage, Variable-Speed, Upflow/Horizontal, Ultra-Low NOx, 17-1/2" Width (GRVS800604BU)
$2,490.18$2,147.79$2,490.18$2,147.79 -
Evaporator Coil
1 × Goodman 2.5 Ton AC Horizontal Evaporator Coil | 17-1/2" High Cabinet With EEV Expansion | R32 (CHPEA3026B3)
$730.91$630.40$730.91$630.40
Heat pumps lose efficiency below ~25°F. A heat kit adds electric backup for the coldest days. Most homes this size choose 8–10 kW.

We highly recommend this protection. Covers the technician’s bill if a repair is ever needed — parts are already covered separately.
-
0% Interest — for orders over $3000
-
No Credit Needed — Offered at checkout
-
7 night Luxury Resort Stay — For orders over $3000
What's Included
What's Included
Goodman 2 Ton Up to 19 SEER2 Variable-Speed Inverter Side Discharge AC Condenser - R32
Model Number
GXV9SA2410
Dimensions
36-5/8" W x 13-3/4" D x 27-3/8" H
Documents
Warranty
Parts: 10 years | Limited Replacement: 10 years
Goodman 60000 BTU 80% AFUE Gas Furnace - Single Stage, Variable-Speed, Upflow/Horizontal, Ultra-Low NOx, 17-1/2" Width
Model Number
GRVS800604BU
Dimensions
17-1/2" W x 28" D x 33-3/8" H
Documents
Warranty
Parts: 10 years | Unit Replacement: 10 years

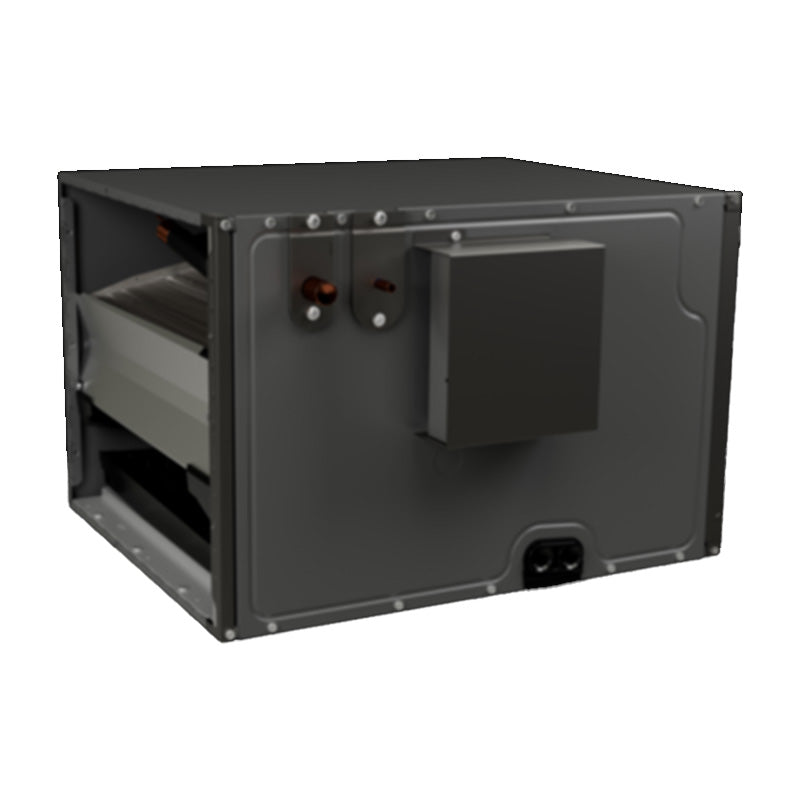

Goodman 2.5 Ton Cased Aluminum Horizontal Coil | 17-1/2" High Cabinet With EEV Expansion | R32
Model Number
CHPEA3026B3
Dimensions
26" W x 21" D x 17-1/2" H
Documents
Limited Warranty
Parts: 10 years

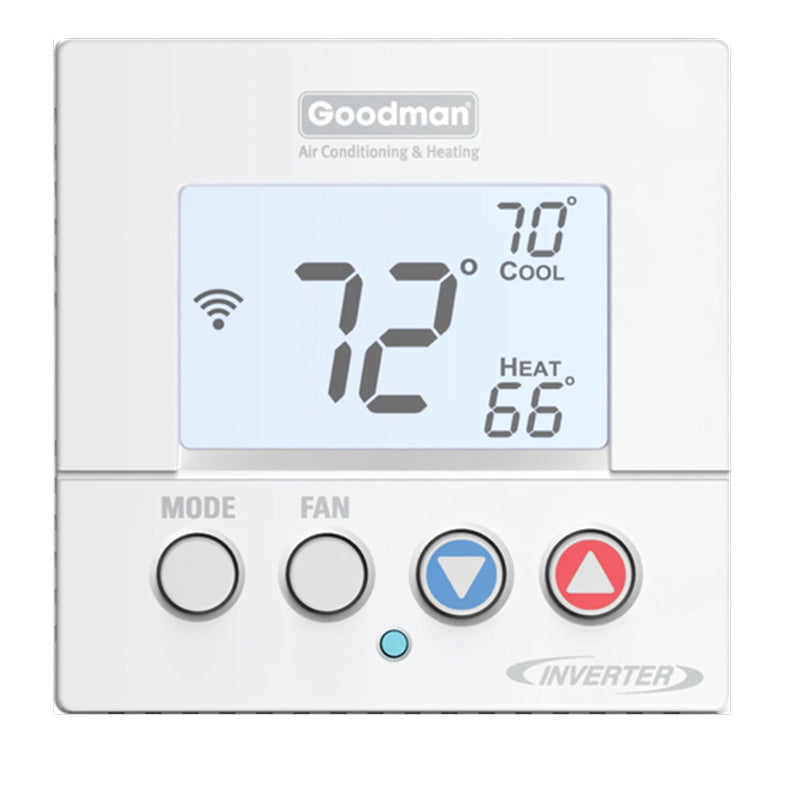

Goodman GTST Connected Thermostat
Model Number
GTST-CW-WH-A
Dimensions
3.3" W x 3.3" H x 1.04" D
Documents
Limited Warranty
Parts: 5 years

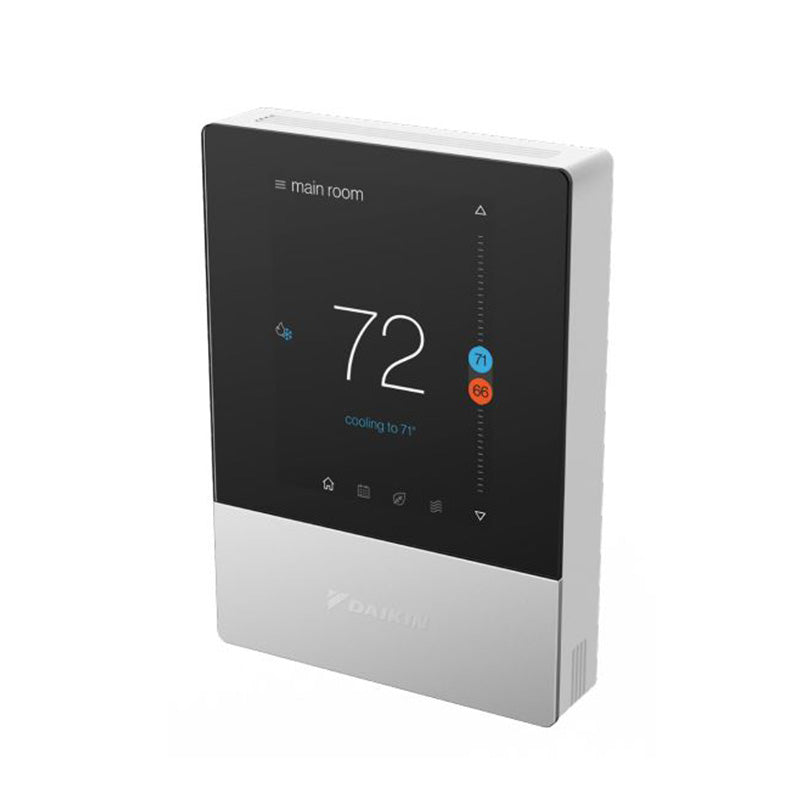

Daikin One Touch Smart Thermostat
Model Number
DTST-TOU-A
Dimensions
11-9/16" W x 13-3/4" D x 7-1/16" H
Documents
Limited Warranty
Parts: 12 years
AHRI Number
217178584
Outdoor Unit Details
Outdoor Unit Details

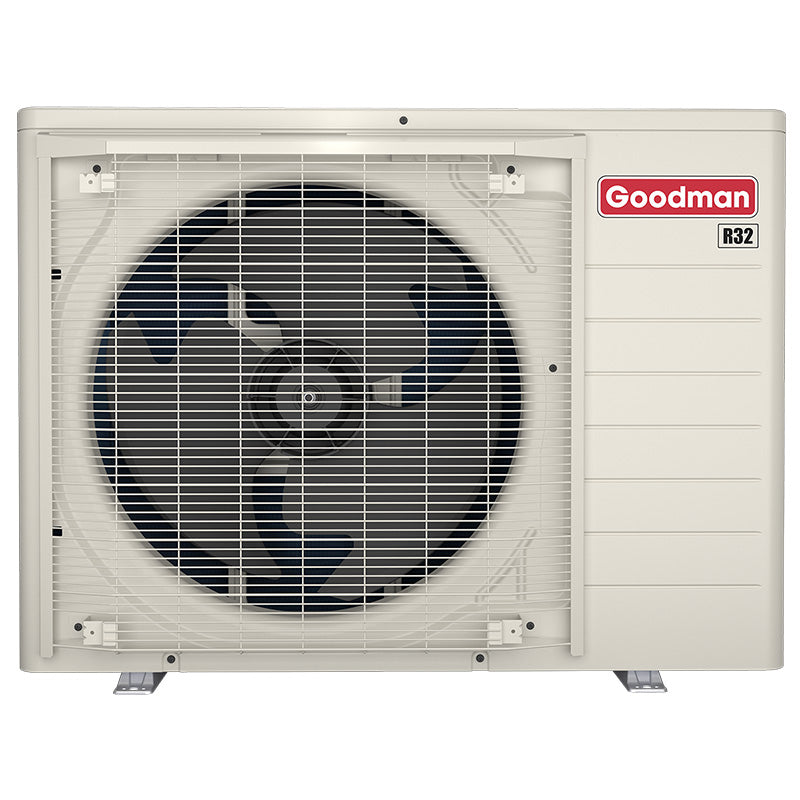

Goodman 2 Ton 19 SEER2 Variable-Speed Side Discharge AC Condenser – R32
Quiet, Energy-Efficient Cooling with Inverter Technology
The Goodman GXV9SA2410 delivers efficient, dependable cooling for smaller homes using advanced variable-speed inverter technology. It continuously adjusts output to maintain consistent comfort, reduce humidity, and lower energy usage. Its compact side-discharge design allows for flexible installation, while R-32 refrigerant supports improved efficiency with reduced environmental impact.
- Up to 19 SEER2 energy efficiency
- Variable-speed inverter compressor for precise comfort
- Quiet operation with sound-reducing design
- Side-discharge cabinet for space-saving installation
- Uses environmentally friendly R-32 refrigerant
Why Choose This AC Condenser?
- Lower Energy Bills: Variable-speed inverter technology adjusts cooling output as needed, helping reduce energy use compared to traditional single-stage units.
- More Consistent Comfort: The inverter-driven AC condenser runs longer at lower speeds to minimize temperature swings and improve indoor comfort.
- Quiet Outdoor Operation: Advanced sound-reducing design and quiet operation help keep outdoor noise levels low.
- Space-Saving Side Discharge Design: The compact side-discharge condenser allows flexible installation in tight spaces and modern home layouts.
- Environmentally Responsible Cooling: Uses R-32 refrigerant, which offers improved efficiency and a lower environmental impact compared to older refrigerants.
Indoor Unit Details
Indoor Unit Details

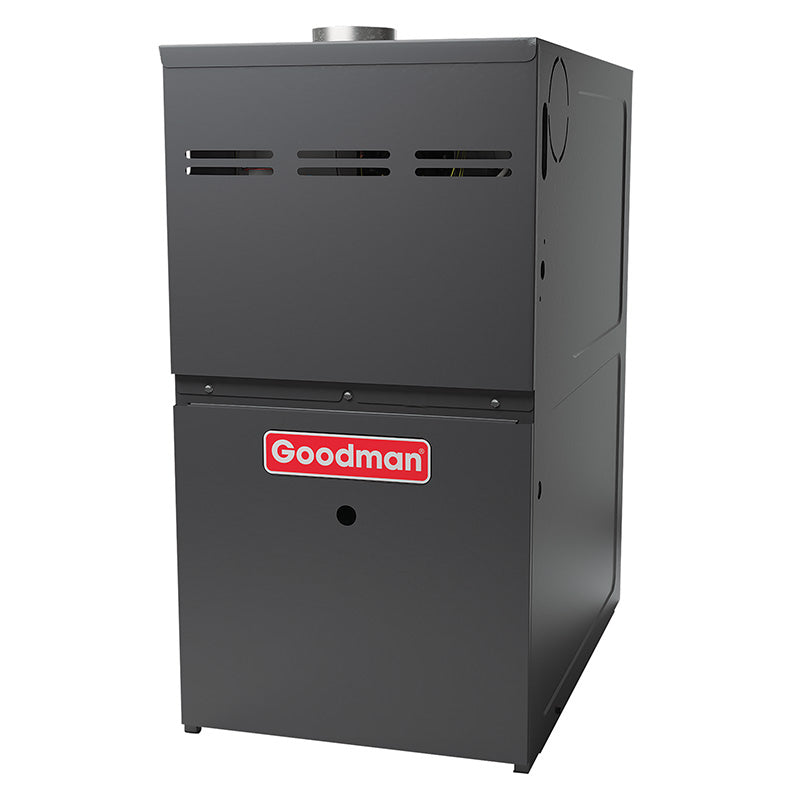

Goodman 60,000 BTU 80% AFUE Gas Furnace – GRVS800604BU
High-efficiency comfort with ultra-low emissions in a compact 17.5” cabinet
The Goodman GRVS800604BU delivers reliable 60,000 BTU heating performance with an efficient 80% AFUE rating, making it an excellent choice for homeowners and small businesses seeking dependable comfort without high energy costs. Designed with a variable-speed ECM blower motor, this furnace provides quieter operation, improved air circulation, and enhanced temperature consistency throughout the home.
Built to meet stringent Ultra-Low NOx emission standards, this model supports compliance with SCAQMD Rule 1111 and SJVUAPCD Rule 4905, making it ideal for California installations. Its 17.5-inch width allows for easy placement in tight mechanical spaces, while multi-position installation flexibility—upflow or horizontal—ensures it adapts to your home’s layout.
- 60,000 BTU heating capacity for efficient warmth in medium-size homes
- 80% AFUE for dependable, cost-effective heating performance
- Variable-speed ECM blower enhances air distribution and reduces noise
- Single-stage gas valve provides reliable
