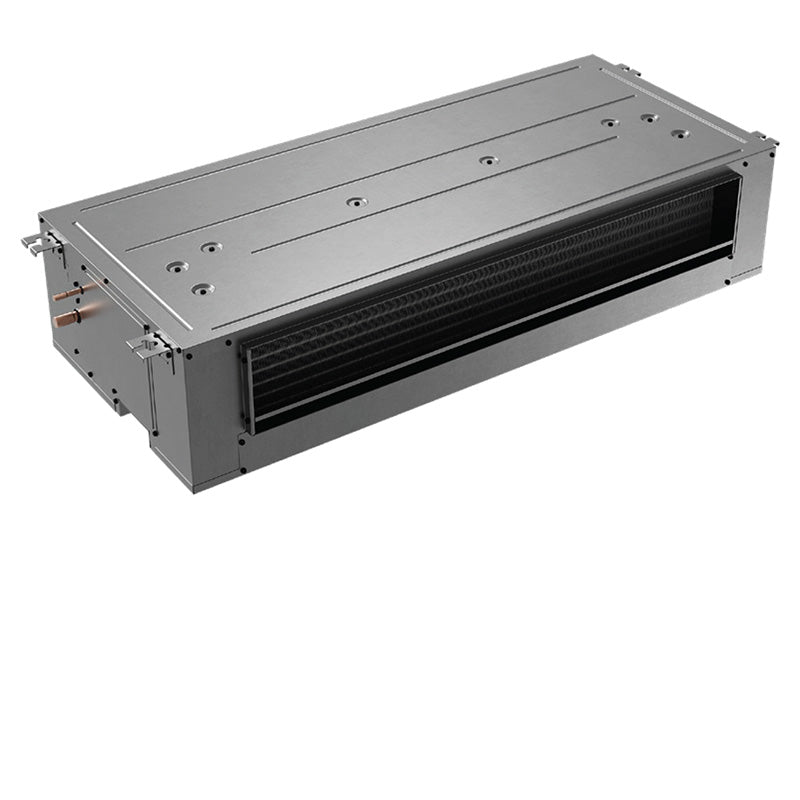

Goodman 2 Ton Pancake Air Handler - Ceiling Mount Air Handler With 6 kW Electric Heat | R32 (ACST24LU1306)

ACST R32 Overview

Features

• All-Aluminum tube/aluminum fin coil
• Direct-drive, resilient-mount, multi-speed motor
• Sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 and 10 kW
• High-efficiency evaporator coil
• Quiet operation
• ACST Models: Equipped with a factory installed and fully adjustable TXV for improved performance
• Factory installed casing along with mounting brackets for all tonnages
• Configurable front and bottom return for all tonnages
• Factory installed R-32 sensor designed for the lifespan of the coil
• AHRI Certified; ETL Listed
• Primary/secondary drain connection in a high-temperature plastic drain pan
• Suitable for free-return installation (non-ducted return air)
• Galvanized-steel construction
• Factory-installed pull-type disconnect
• Easy service access
• Optimized for the use with R-32 refrigerant
• Cabinet air leakage less than 2% at 1 inch H₂O when tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 1 inch H₂O when tested in accordance with ASHRAE standard 193
