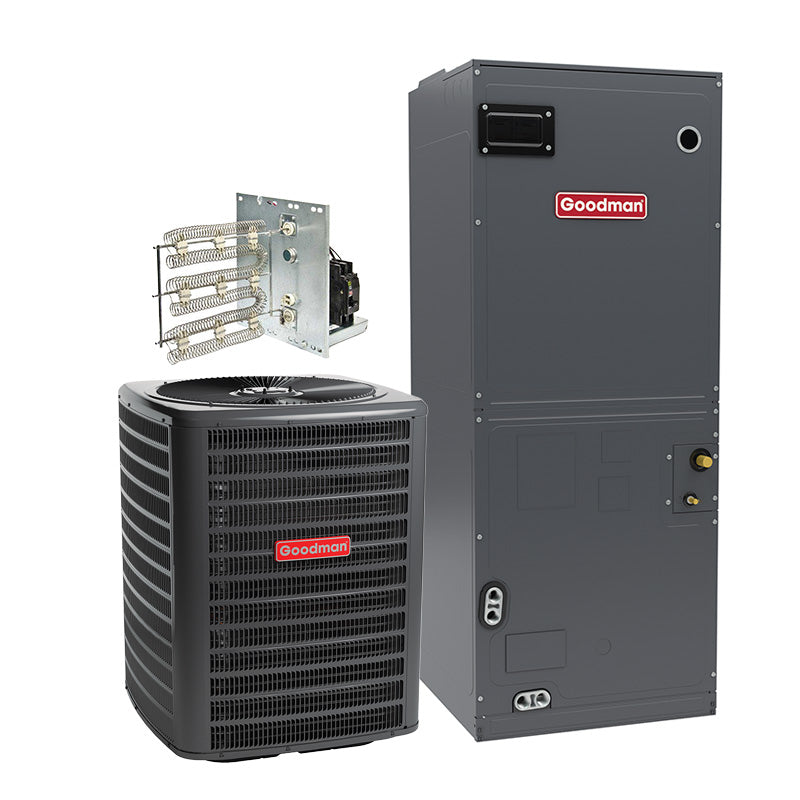

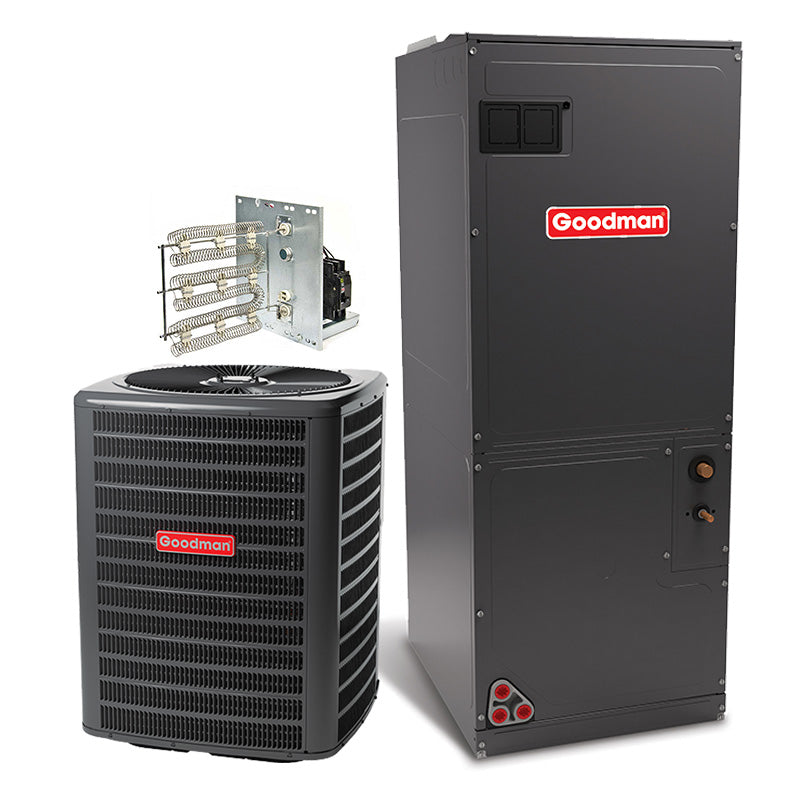

Goodman 3.5 Ton 14.5 SEER2 Split System with Electric Heat w/3.5 Ton A/H

GSXN4 Condenser

Standard Features

• Energy-Efficient Compressor
• Copper tube/ enhanced aluminum fin coil-5mm diameter on 1.5-4.0T
• Factory-installed filter drier
• Fully charged for 15’ of tubing length
• Service valves with sweat connections and easy-to-access gauge ports
• Contactor with lug connection
• Ground lug connection
• AHRI Certified; ETL Listed

Cabinet Features

• Removable grille style top style grill design compatible with UL 60335-2-40
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Steel louver coil guard
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

AMST Air Handler

Standard Features

• Internal factory-installed thermal expansion valves for cooling and heat pump applications
• Direct drive, multi-speed ECM blower motor
• All-aluminum evaporator coil
• Coil mounting track for quick repositioning
• Optimized for use with R-410A refrigerant
• Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
• AHRI certified; ETL listed
• Rigid SmartFrame ™ cabinet
• Horizontal or vertical configuration capabilities
• 21” depth for easier attic access
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Screw-less sides and back helps to reduce condensation when installed in humid locations
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Glue-less cabinet insulation retention
• Tool-less filter access
• Field Installed 3 kW – 25 kW electric heater kits available

Heating Element

Standard Features

• Sequencers for better temperature control
• Multiple branch circuit capability
• Completely assembled and tested
• Control circuitry arranged to readily permit staging
• Factory-installed circuit breakers available on specific models (See Electrical Data)
• Fuse link secondary high-temperature limit control
• Plug-in wiring harness for ease of installation into air handler
• Rust-resistant nickel chromium heat elements
• ETL Listed
