Goodman 3 Ton 17.2 SEER2 80000 BTU 96% Two Stage Variable Speed Gas Hybrid Heat Pump Dual System Horizontal

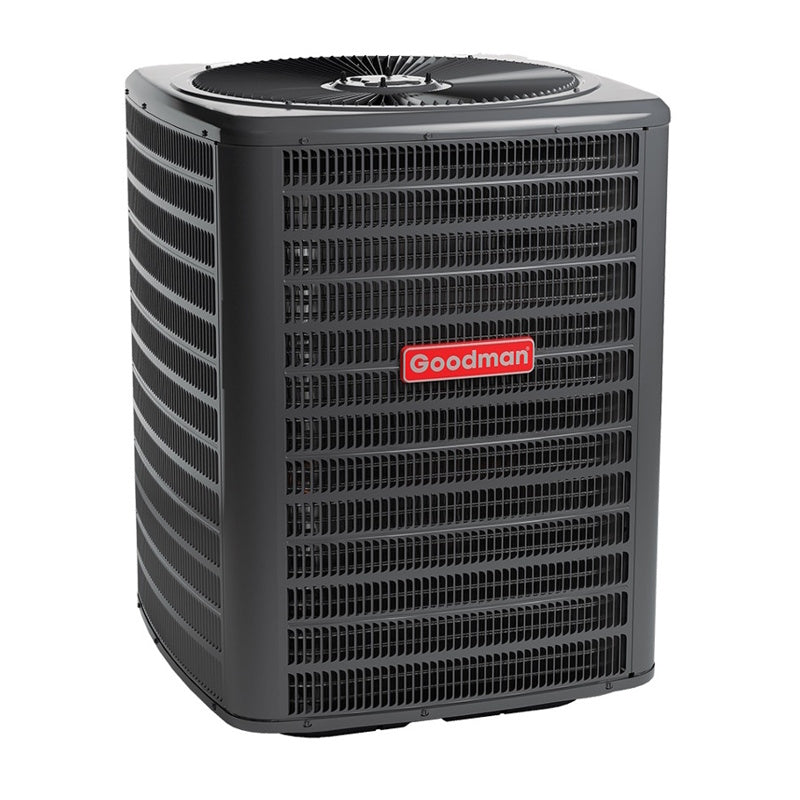

GSZC7 Condenser

Standard Features

• Two-Stage Copeland® UltraTech scroll compressor
• High-density foam compressor sound blanket
• Integrated communicating ComfortBridgeTM technology
• Commissioning and diagnostics via indoor board Blue-tooth with the CoolCloudTM phone and tablet application
• ComfortAlertTM built in diagnostics
• Copper tube/enhanced aluminum fin coil- 5mm on 2.0-3.0T
• Efficient, two-speed ECM condenser fan motor
• Simple low-voltage wiring to out-door unit in communicating mode
• Diagnostic indicator lights and storage of six fault codes
• Color-coded terminal strip for non-communicating set-up
• High- and low-pressure switches
• Time-delay technology with short-cycle protection to ensure quiet, reliable defrost
• Factory-installed bi-flow liquid-line filter drier
• Factory-installed suction-line accumulator
• Factory-installed compressor crankcase heater
• Factory-installed high-capacity muffler
• Factory-installed coil and ambient temperature sensors
• AHRI Certified; ETL Listed

Cabinet Features

• Grille-style sound control top design
• Custom Nickel Gray powder-paint finish
• 500-hour salt-spray tested
• Wire fan discharge grille
• Steel louver coil guard
• Single panel access to controls
• with space provided for field-installed accessories
• Sweat connection service valves with easy access to gauge ports
• When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

GMVC96 Furnace

Standard Features

• Integrated communicating ComfortBridge™ Technology
• Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application
• Heavy-duty aluminized-steel tubular heat exchanger
• Stainless-steel secondary heat exchanger
• Two-stage gas valve provides quiet, economical heating
• Durable Silicon Nitride igniter
• Quiet two-speed induced draft blower
• Compatible with any single-stage thermostat
• Self-diagnostic control board with constant memory fault code history output to a triple 7-segment display
• Color-coded low-voltage terminals with provisions for electronic air cleaner
• Efficient and quiet variable-speed airflow system gently ramps up or down according to heating or cooling demand
• Multiple continuous fan speed options offer quiet air circulation
• Auto-Comfort and enhanced dehumidification modes available
• All models comply with California 40 ng/J Low NOx emissions standard
• Can no longer be installed in California’s South Coast Air Quality Management District (SCAQMD) on or after October 1, 2019.

Cabinet Features

• Designed for multi-position installation — upflow, horizontal left or right
• Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
• Easy to install top venting with optional side venting
• Convenient left or right connection for gas and electrical service
• Cabinet air leakage (QLeak)
• Heavy-gauge steel cabinet with durable baked-enamel finish
• Fully insulated heat exchanger and blower section
• Airtight solid bottom or side-return with easy-cut tabs for effortless removal in bottom air-inlet applications

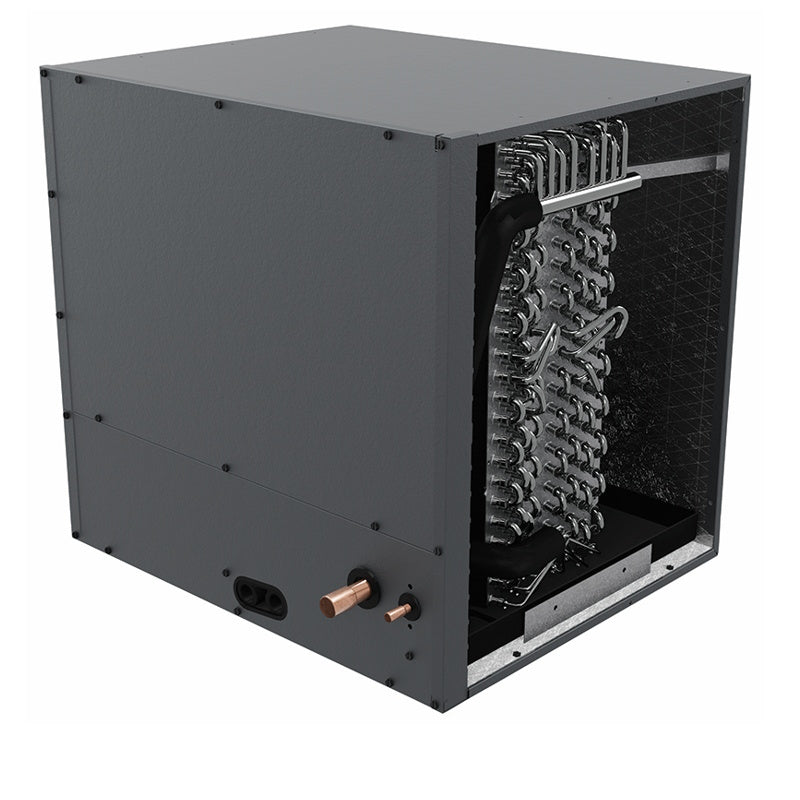

CHPTA Indoor Coil

Standard Features

• All-Aluminum evaporator coil
• Optimized for use with R-410A refrigerant
• Some models suitable for use with R-410A or R-22 refrigerant
• CAPT, CAPTA, CHPT, CHPTA models feature factory-installed thermal expansion valves for cooling and heat pump applications
• CAPF, CAPFA, CAUF, CAUFA, CHPF, CSCF models feature a check flowrator for cooling and heat pump applications
• Vertical and horizontal models available
• 21” depth for easier attic access
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized,leather grain-embossed finish
• Rust resistant, thermoplastic drain pans featuring a low water-retention design
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• UV-resistant drain pan
• AHRI Certified; ETL Listed
