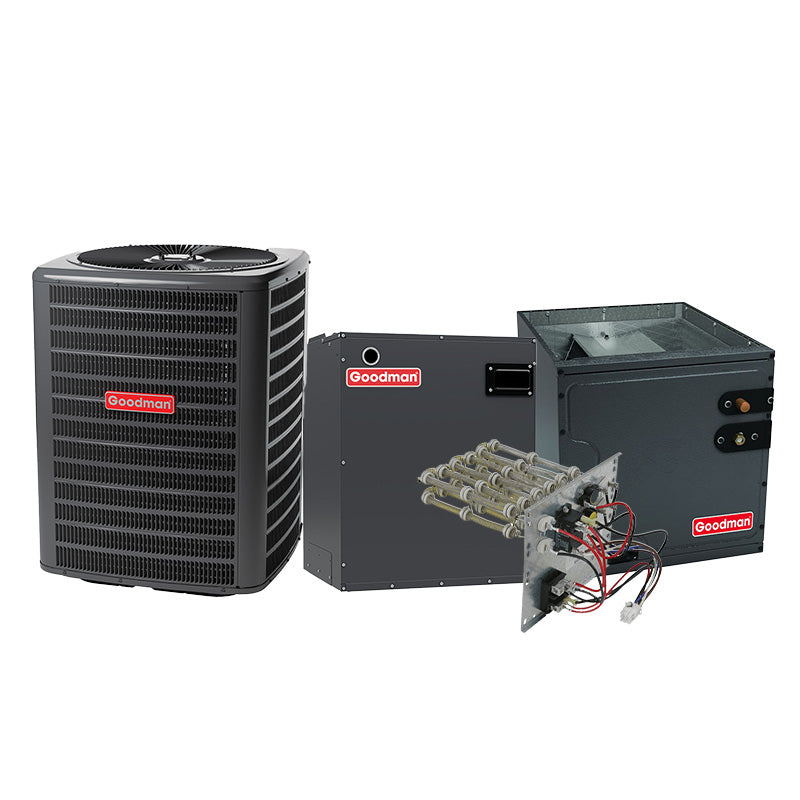

Goodman 3 Ton 17.2 SEER2 R32 Two Stage Cooling Only System With Electric Heat

GLXT7C Overview

Standard Features

• Two-Stage Copeland Ultra-Tech scroll compressor
• Quiet two-speed ECM outdoor fan motor
• Integrated communicating ComfortBridge™ Technology
• Commissioning and diagnostics via Bluetooth indoor board via CoolCloud™ App
• Copeland^® ComfortAlert™ built in diagnostics
• Copper tube/enhanced aluminum fin coil - 5mm on 2.0-3.0T
• Color-coded terminal strip for non-communicating set-up
• Only two low-voltage wires required in communication mode
• Factory-installed filter drier
• Factory-installed transformer
• Factory-installed high and low-pressure switches
• High-density foam compressor sound blanket
• Fully charged for 15’ of tubing length
• Ambient temperature sensors
• Ground lug connection
• AHRI Certified - ETL Listed

Cabinet Features

• Removable grille-style top design compliant with UL 60335-2-40
• Venturi for increased velocity of airflow
• Heavy-gauge galvanized steel cabinet
• Baked-on powder-paint finish with 500-hour salt-spray approval
• Steel louver coil guard with rust-resistant screws.
• Top and side maintenance access
• Single-panel access to controls with space for field-installed accessories
• Service valves with sweat connections and easy-access gauge ports
• When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

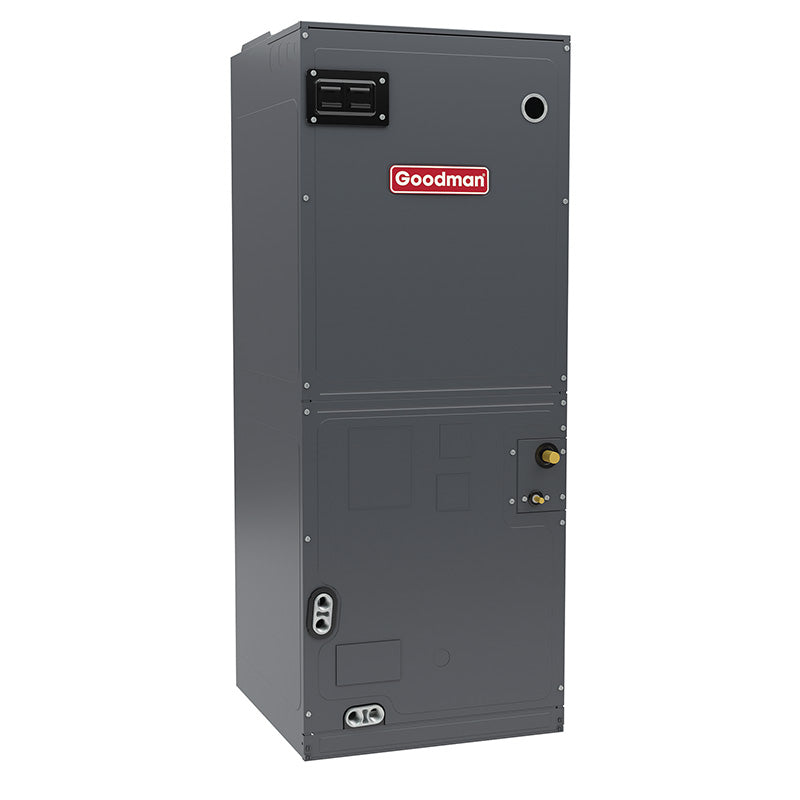

AMVT Overview

Standard Features

• Internal factory-installed thermal expansion valves for cooling and heat pump applications
• Variable-speed ECM blower motor
• Compatible with Goodman smart thermostat and other Goodman communicating equipment
• Auto configuration of the airflow and tonnage in communicating mode
• All-aluminum evaporator coil
• Provides constant CFM over a wide range of static pressure conditions independent of duct system
• CFM indicator
• Fault recall of six most recent faults
• Provides adjustable low CFM for efficient fan-only operation
• Improved humidity and comfort control
• Built-in compatibility with multi-stage heat pump and cooling applications
• Factory installed R-32 sensor designed for the lifespan of the coil
• Optimized for the use with R-32 refrigerant
• UL 60335 2-40 Compliant
• AHRI certified; ETL listed

Cabinet Features

• Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193

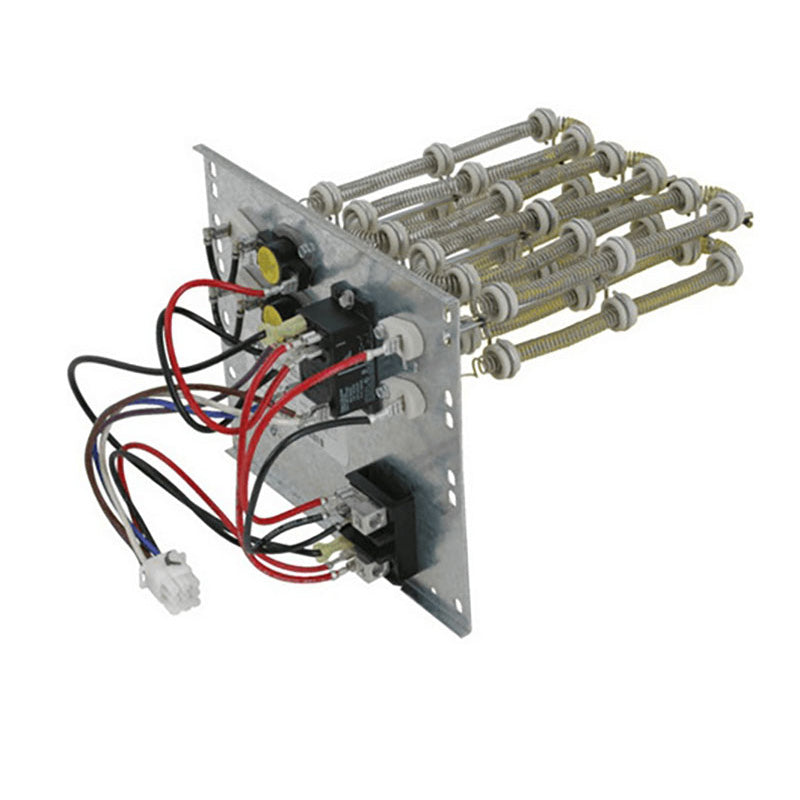

• 3 kW – 25 kW electric heater kits
• Horizontal or vertical configuration capabilities
• 21” depth for easier attic access
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Screw-less sides and back helps to reduce condensation when installed in humid locations
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Glue-less cabinet insulation retention
• Tool-less filter access
