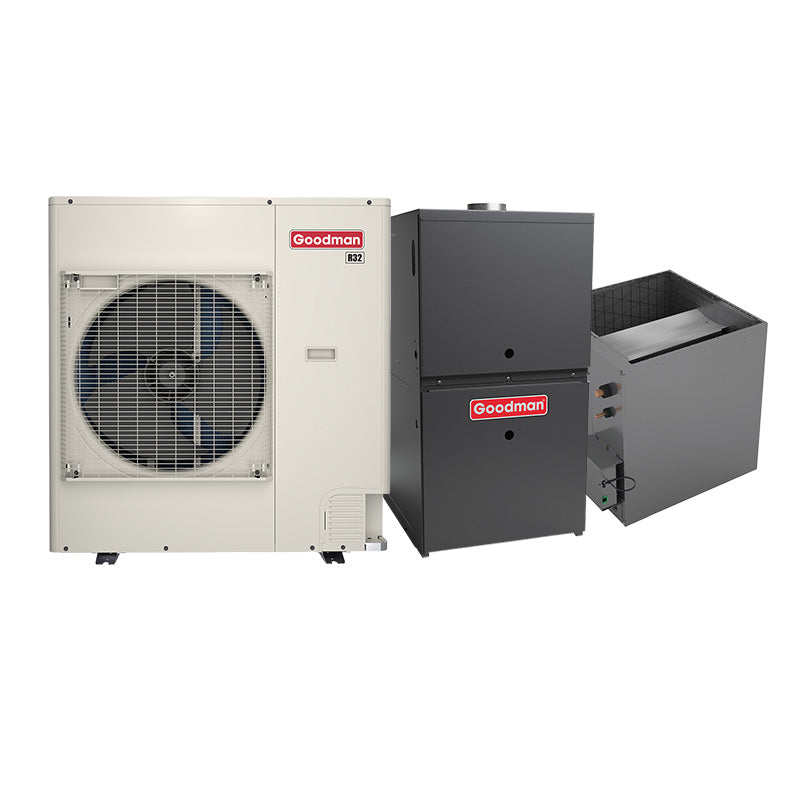

Goodman 3 Ton 18.5 SEER2 Dual Fuel Side Discharge Heat Pump & Gas Furnace Hybrid System - Inverter Heat Pump, 80,000 BTU 80% AFUE Low NOx 2-Stage Variable-Speed Upflow Furnace, R32

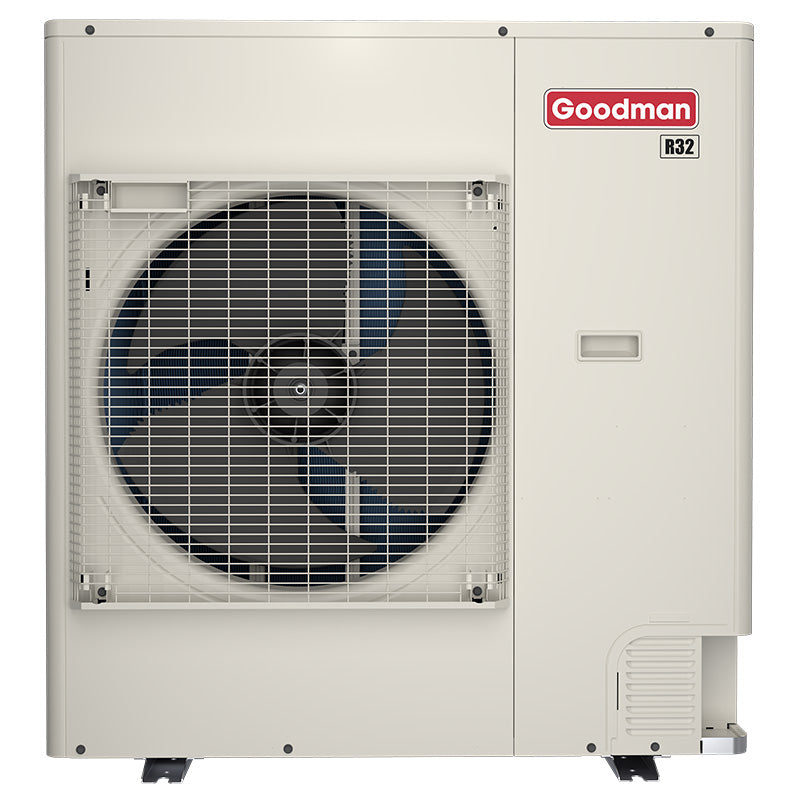

Goodman GZV7SA3610 3 Ton Variable-Speed Side Discharge Heat Pump

Premium inverter-driven comfort for whole-home heating and cooling

The Goodman GZV7SA3610 delivers 3 tons (36,000 BTU) of high-efficiency heating and cooling, making it an excellent choice for mid-to-large homes. Its variable-speed inverter compressor continuously adapts to indoor conditions, reducing temperature swings while improving humidity control and overall comfort.

Designed for year-round performance, this heat pump offers strong heating output even in colder weather and operates quietly thanks to advanced sound-dampening features. The compact side-discharge cabinet ensures installation flexibility without sacrificing performance.

• 3 ton (36,000 BTU) heating and cooling capacity
• Up to 19.0 SEER2 efficiency
• Variable-speed swing compressor technology
• Side-discharge space-saving design
• R-32 refrigerant for improved environmental performance
• Communicating capability with compatible Goodman equipment
• Cold climate rated for dependable winter heating
• Ultra-quiet operation with Quiet Mode settings

GRVT800805CX Overview

Smart, Quiet Heating with the Goodman GRVT80 Gas Furnace

The Goodman GRVT80 is a high-performance, two-stage, variable-speed gas furnace designed to deliver consistent warmth and energy efficiency. With up to 80% AFUE (Annual Fuel Utilization Efficiency), this furnace ensures that most of your fuel is converted into usable heat—helping you save on energy bills while staying comfortable all winter long.

Advanced ComfortBridge™ Technology for Smarter Control

Equipped with ComfortBridge™ technology, the GRVT80 continuously monitors and adjusts performance for optimal comfort and efficiency. Its variable-speed ECM blower motor and two-speed draft blower provide quiet, even airflow throughout your home, while the SureStart® silicon nitride igniter and self-diagnostic control board ensure reliable operation and easy maintenance.

Durable, Flexible, and Backed by Warranty

Built with a heavy-duty aluminized-steel heat exchanger and a fully insulated steel cabinet, the GRVT80 is engineered for long-lasting performance and quiet operation. It supports multi-position installation (upflow or horizontal), making it ideal for a variety of home layouts. Enjoy peace of mind with a Lifetime Heat Exchanger Limited Warranty, 10-Year Parts Warranty, and 10-Year Unit Replacement Warranty (with registration).

Standard Features

• Integrated communicating ComfortBridge™ technology
• Two-stage gas valve provides quiet, economical heating
• Commissioning and diagnostics via on board Bluetooth with the CoolCloud™ phone and tablet application
• Efficient and quiet variable-speed ECM circulator motor gently ramps up or down according to heating or cooling demand
• SureStart® Silicon Nitride igniter designed for long igniter life
• Self-diagnostic control board with constant memory fault code history output to a triple 7-segment display
• Low constant fan speed circulates air throughout the home
• Quiet, two-speed induced draft blower
• California Low NOx emissions-compliant models available
• Can no longer be installed in California’s South Coast Air Quality Management District (SCAQMD) on or after October 1, 2019.
• AHRI Certified; ETL Listed

Cabinet Features

• Fully insulated, heavy-gauge steel cabinet with durable baked-enamel finish
• Multi-position installation: upflow, horizontal left or right
• Removable bottom for side- or bottom-return applications
• Convenient left or right connection for gas/electric service
• Cabinet air leakage ≤ 2%
• Coil and furnace fit flush for most installations

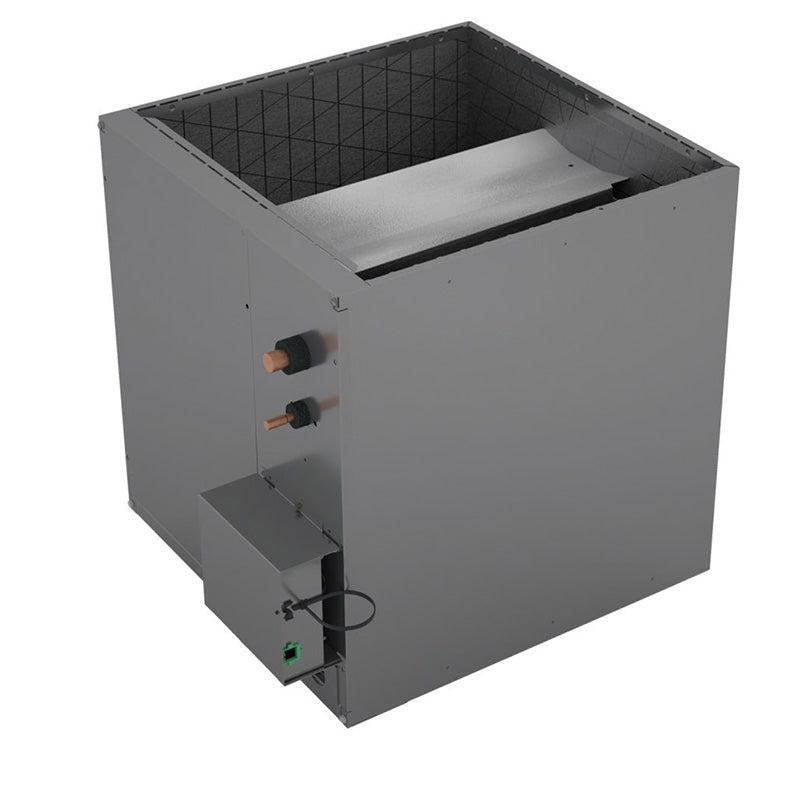

Goodman CAPEA4830C3 4 Ton R-32 Cased Upflow/Downflow Evaporator Coil – 21" Cabinet

Large-Capacity Aluminum Coil with Factory-Installed EEV

The Goodman CAPEA Series indoor evaporator coil is engineered for high-efficiency R-32 air conditioning and heat pump systems. Featuring an all-aluminum coil design and a factory-installed Electronic Expansion Valve (EEV), this coil delivers precise refrigerant control, improved efficiency, and dependable long-term performance. Designed for upflow or downflow installation, the CAPEA coil integrates seamlessly with compatible Goodman and Daikin outdoor units for optimized system operation.

• Optimized for R-32 refrigerant systems
• Factory-installed Electronic Expansion Valve (EEV)
• All-aluminum evaporator coil construction
• Upflow and downflow installation versatility
• Rust-resistant thermoplastic drain pan with secondary drain connections
• Foil-faced insulation to reduce cabinet condensation

GTST Overview

The Goodman GTST connected thermostat is designed to deliver the ultimate inverter experience when used with the Goodman SD system. Compatible with all Goodman communicating unitary equipment, it can connect to the Goodman Home app via Wi-Fi, allowing control from an iOS or Android phone or tablet. Additionally, the GTST supports voice control with Amazon Alexa or Google Assistant. For enhanced efficiency and comfort, homeowners can program up to four schedule events each day on a seven-day schedule.

Standard Features

• Compact, non-intrusive design suitable for most interior environments
• Multifunction push buttons labeled for mode, fan, set-point up, set-point down
• Wi-Fi-enabled connected thermostat that works with Goodman GTST home app (iOS and Android)
• Voice control by Amazon Alexa and Google Assistant
• Programmable schedule
• Built-in temperature and humidity sensors
• Indoor unit Control: Mode (Auto/Heat/Cool/Emergency Heat), Setpoint (Dual/Single), Fan Speed, Fan On/Auto (with minimum run time)
• LED Mode indicator for heating and cooling
• Dehumidification function (setup with Goodman GTST home app)
• Error and maintenance notifications
• Control and comfort functions: Away mode and geo-fencing
• Over-the-air software update capable (requires Wi-Fi connection)
• Compatible with Cloud Services (Future)
• Setup is possible within the cloud services app, via the commissioning tool. Setup using buttons is possible, but not recommended.

Technical Specifications

• Backlit, 3.5 inch MVA TFT LCD display
• Bi-directional communications protocol for controlling HVAC system
• Multi-language support: English, Spanish, French (Goodman GTST home app only)
• 1 Auxiliary output configurable as a secondary heat source, dehumidifier. or humidifier
• FCC Certified/UL Listed
• An optional trim plate (PSPAC-WPM-L) is available.

One Touch Overview - DTST-TOU-A

The Daikin One Touch smart thermostat is the latest addition to the Daikin One ecosystem, joining the Daikin One smart thermostat as a control solution for Daikin's communicating unitary equipment.

Standard Features

• Simple, elegant industrial design
• Capacitive touchscreen user interface
• Wi-Fi-enabled smart thermostat with iOS and Android app control
• Voice control by Amazon Alexa and Google Assistant
• Control and comfort functions: Away mode, geo-fencing
• Outdoor environment monitoring: outdoor temperature, outdoor humidity, and weather forecast
• Compatible with Daikin One home air monitor for IAQ visualization
• Error and service notifications
• Multi-language support: English, Spanish, French
• Programmable 4-event schedule with adjustable hold function
• Compatible with Daikin One cloud services
• Open API compatible for home control systems such as Control4 and Crestron
• Compliant to California Title 24 (OCST listed), FCC Certified, and UL Listed

Technical Specifications

• Capacitive touch screen
• Backlit, 3.5 inch MVA TFT LCD display
• Bi-directional communications protocol for controlling HVAC system
• Bubble level (to aid installation)
• 640 × 480 pixels × 24 bit RGB (full color screen)
• Wi-Fi
• Operation Temperature: 32°F to 120°F
