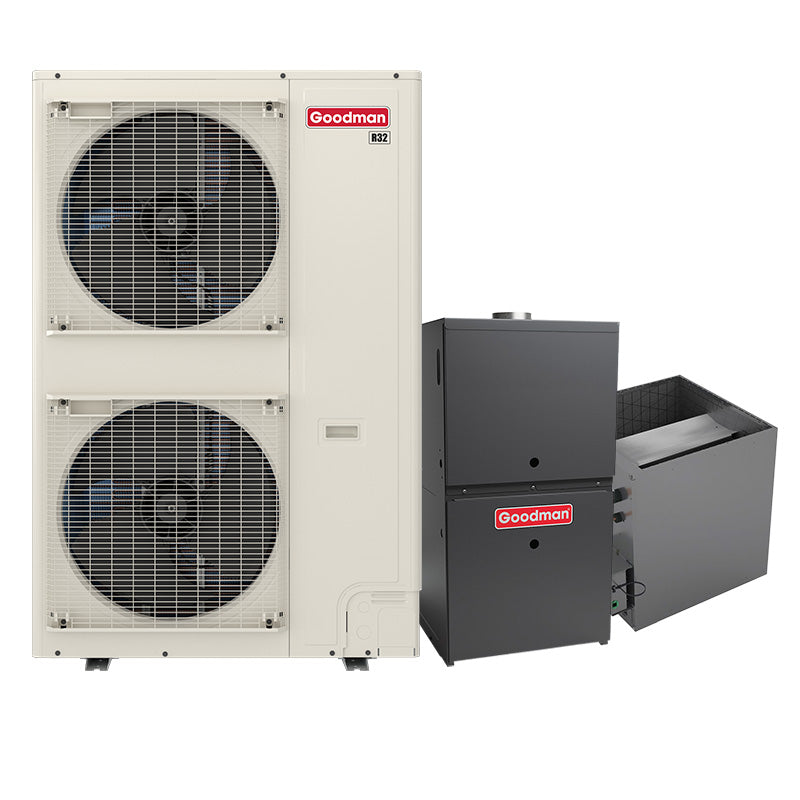

Goodman 4 Ton 18 SEER2 Dual Fuel Side Discharge Heat Pump & Gas Furnace System - Inverter Heat Pump, 80,000 BTU 80% AFUE 2-Stage Variable-Speed Upflow Furnace, , R32

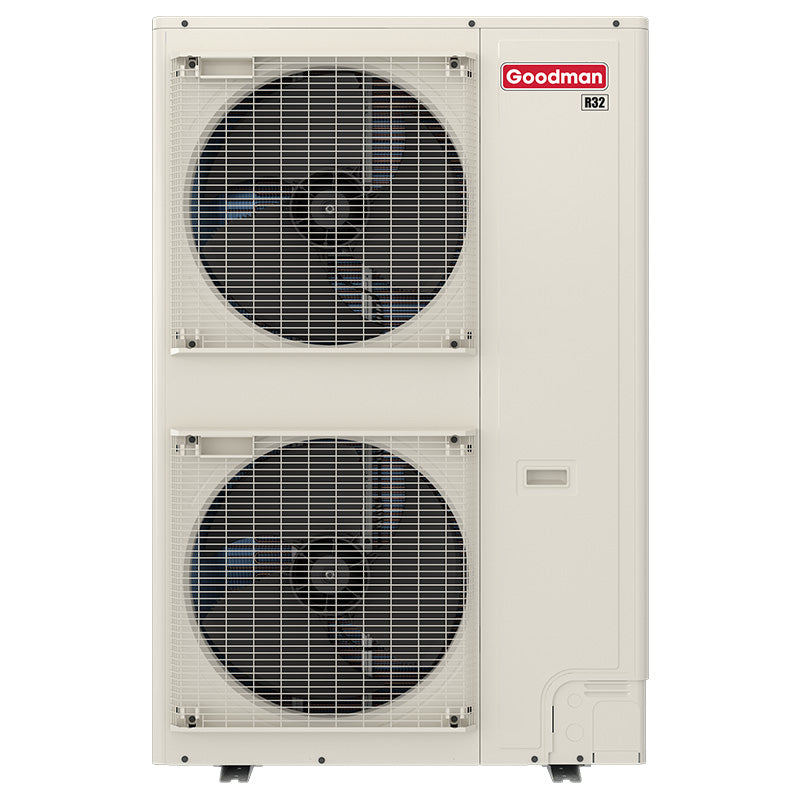

Goodman 4 Ton Variable-Speed Inverter Heat Pump Condenser – Up to 21 SEER2 Side Discharge System

Powerful 46,000–48,000 BTU Comfort for Larger Homes and Business Applications

The Goodman GZV9SA4810 4 Ton heat pump condenser is built for larger homes and light commercial spaces that need powerful, efficient heating and cooling. This variable-speed inverter system delivers up to 46,000 BTU cooling capacity and up to 48,000 BTU heating capacity at 47°F, helping maintain consistent comfort while using energy more efficiently.

With R-32 refrigerant, a compact side discharge cabinet, and advanced Goodman communicating technology, this unit is designed for modern comfort needs. Its quiet operation, strong cold-weather heating performance, and built-in diagnostics make it a strong option for property owners looking for long-term reliability and comfort control.

Features & Benefits

• 4 Ton capacity with up to 46,000 BTU cooling and 48,000 BTU heating
• Up to 21 SEER2 and 10.0 HSPF2 high-efficiency performance
• Variable-speed inverter compressor helps reduce temperature swings
• Side discharge design saves outdoor space and improves placement flexibility
• Quiet-mode operation and high-density compressor sound blanket
• R-32 refrigerant for efficient heating and cooling performance
• Heating operation range down to -20°F for cold-climate applications
• Field-selectable boost mode for demanding conditions
• Compatible with Goodman communicating equipment
• Corrosion-resistant cabinet with 500-hour salt-spray tested finish

GRVT800805CN Overview

Smart, Quiet Heating with the Goodman GRVT80 Gas Furnace

The Goodman GRVT80 is a high-performance, two-stage, variable-speed gas furnace designed to deliver consistent warmth and energy efficiency. With up to 80% AFUE (Annual Fuel Utilization Efficiency), this furnace ensures that most of your fuel is converted into usable heat—helping you save on energy bills while staying comfortable all winter long.

Advanced ComfortBridge™ Technology for Smarter Control

Equipped with ComfortBridge™ technology, the GRVT80 continuously monitors and adjusts performance for optimal comfort and efficiency. Its variable-speed ECM blower motor and two-speed draft blower provide quiet, even airflow throughout your home, while the SureStart® silicon nitride igniter and self-diagnostic control board ensure reliable operation and easy maintenance.

Durable, Flexible, and Backed by Warranty

Built with a heavy-duty aluminized-steel heat exchanger and a fully insulated steel cabinet, the GRVT80 is engineered for long-lasting performance and quiet operation. It supports multi-position installation (upflow or horizontal), making it ideal for a variety of home layouts. Enjoy peace of mind with a Lifetime Heat Exchanger Limited Warranty, 10-Year Parts Warranty, and 10-Year Unit Replacement Warranty (with registration).

Standard Features

• Integrated communicating ComfortBridge™ technology
• Two-stage gas valve provides quiet, economical heating
• Commissioning and diagnostics via on board Bluetooth with the CoolCloud™ phone and tablet application
• Efficient and quiet variable-speed ECM circulator motor gently ramps up or down according to heating or cooling demand
• SureStart® Silicon Nitride igniter designed for long igniter life
• Self-diagnostic control board with constant memory fault code history output to a triple 7-segment display
• Low constant fan speed circulates air throughout the home
• Quiet, two-speed induced draft blower
• California Low NOx emissions-compliant models available
• Can no longer be installed in California’s South Coast Air Quality Management District (SCAQMD) on or after October 1, 2019.
• AHRI Certified; ETL Listed

Cabinet Features

• Fully insulated, heavy-gauge steel cabinet with durable baked-enamel finish
• Multi-position installation: upflow, horizontal left or right
• Removable bottom for side- or bottom-return applications
• Convenient left or right connection for gas/electric service
• Cabinet air leakage ≤ 2%
• Coil and furnace fit flush for most installations

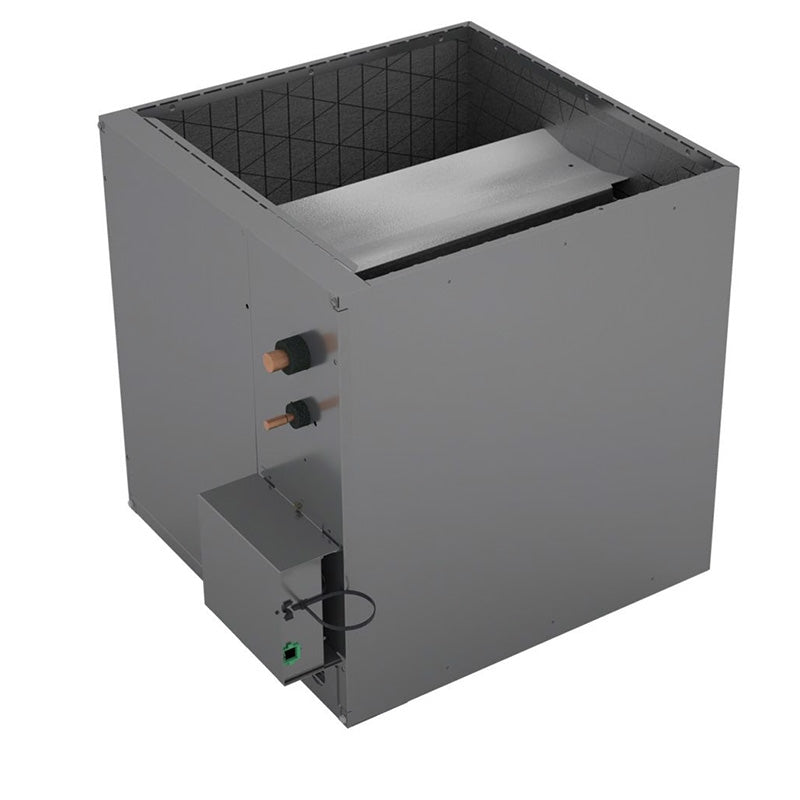

Goodman CAPEA6030C3 5 Ton R-32 Cased Upflow/Downflow Evaporator Coil – 21" Cabinet

Maximum-Capacity Aluminum Coil with Precision Electronic Expansion Valve

The Goodman CAPEA Series indoor evaporator coil is engineered for high-efficiency R-32 air conditioning and heat pump systems. Featuring an all-aluminum coil design and a factory-installed Electronic Expansion Valve (EEV), this coil delivers precise refrigerant control, improved efficiency, and dependable long-term performance. Designed for upflow or downflow installation, the CAPEA coil integrates seamlessly with compatible Goodman and Daikin outdoor units for optimized system operation.

• Optimized for R-32 refrigerant systems
• Factory-installed Electronic Expansion Valve (EEV)
• All-aluminum evaporator coil construction
• Upflow and downflow installation versatility
• Rust-resistant thermoplastic drain pan with secondary drain connections
• Foil-faced insulation to reduce cabinet condensation

GTST Overview

The Goodman GTST connected thermostat is designed to deliver the ultimate inverter experience when used with the Goodman SD system. Compatible with all Goodman communicating unitary equipment, it can connect to the Goodman Home app via Wi-Fi, allowing control from an iOS or Android phone or tablet. Additionally, the GTST supports voice control with Amazon Alexa or Google Assistant. For enhanced efficiency and comfort, homeowners can program up to four schedule events each day on a seven-day schedule.

Standard Features

• Compact, non-intrusive design suitable for most interior environments
• Multifunction push buttons labeled for mode, fan, set-point up, set-point down
• Wi-Fi-enabled connected thermostat that works with Goodman GTST home app (iOS and Android)
• Voice control by Amazon Alexa and Google Assistant
• Programmable schedule
• Built-in temperature and humidity sensors
• Indoor unit Control: Mode (Auto/Heat/Cool/Emergency Heat), Setpoint (Dual/Single), Fan Speed, Fan On/Auto (with minimum run time)
• LED Mode indicator for heating and cooling
• Dehumidification function (setup with Goodman GTST home app)
• Error and maintenance notifications
• Control and comfort functions: Away mode and geo-fencing
• Over-the-air software update capable (requires Wi-Fi connection)
• Compatible with Cloud Services (Future)
• Setup is possible within the cloud services app, via the commissioning tool. Setup using buttons is possible, but not recommended.

Technical Specifications

• Backlit, 3.5 inch MVA TFT LCD display
• Bi-directional communications protocol for controlling HVAC system
• Multi-language support: English, Spanish, French (Goodman GTST home app only)
• 1 Auxiliary output configurable as a secondary heat source, dehumidifier. or humidifier
• FCC Certified/UL Listed
• An optional trim plate (PSPAC-WPM-L) is available.

One Touch Overview - DTST-TOU-A

The Daikin One Touch smart thermostat is the latest addition to the Daikin One ecosystem, joining the Daikin One smart thermostat as a control solution for Daikin's communicating unitary equipment.

Standard Features

• Simple, elegant industrial design
• Capacitive touchscreen user interface
• Wi-Fi-enabled smart thermostat with iOS and Android app control
• Voice control by Amazon Alexa and Google Assistant
• Control and comfort functions: Away mode, geo-fencing
• Outdoor environment monitoring: outdoor temperature, outdoor humidity, and weather forecast
• Compatible with Daikin One home air monitor for IAQ visualization
• Error and service notifications
• Multi-language support: English, Spanish, French
• Programmable 4-event schedule with adjustable hold function
• Compatible with Daikin One cloud services
• Open API compatible for home control systems such as Control4 and Crestron
• Compliant to California Title 24 (OCST listed), FCC Certified, and UL Listed

Technical Specifications

• Capacitive touch screen
• Backlit, 3.5 inch MVA TFT LCD display
• Bi-directional communications protocol for controlling HVAC system
• Bubble level (to aid installation)
• 640 × 480 pixels × 24 bit RGB (full color screen)
• Wi-Fi
• Operation Temperature: 32°F to 120°F
