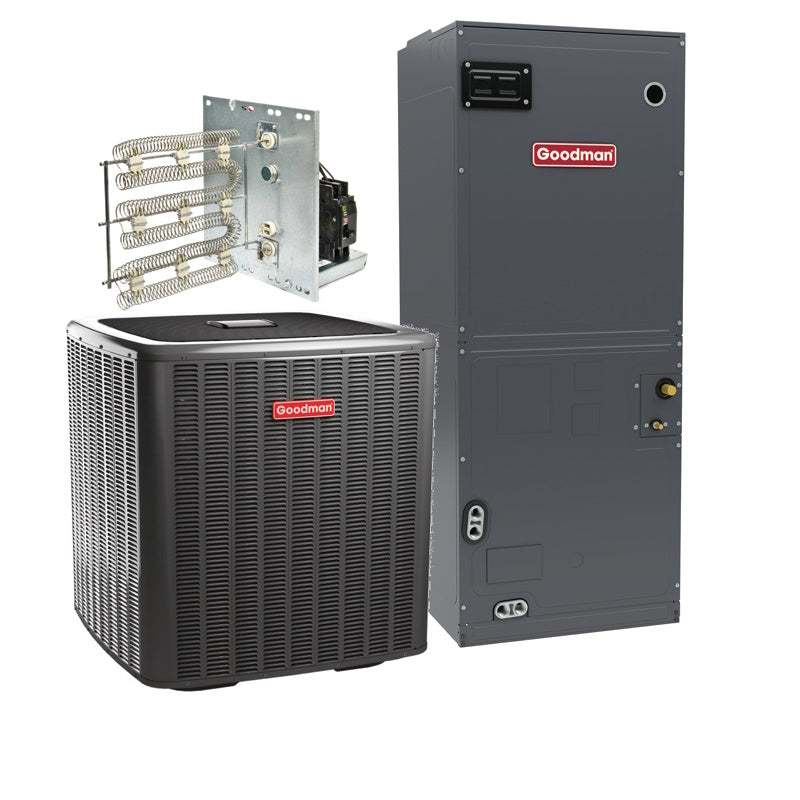

Goodman 5 Ton 19 SEER2 Heat Pump Split System Variable Speed

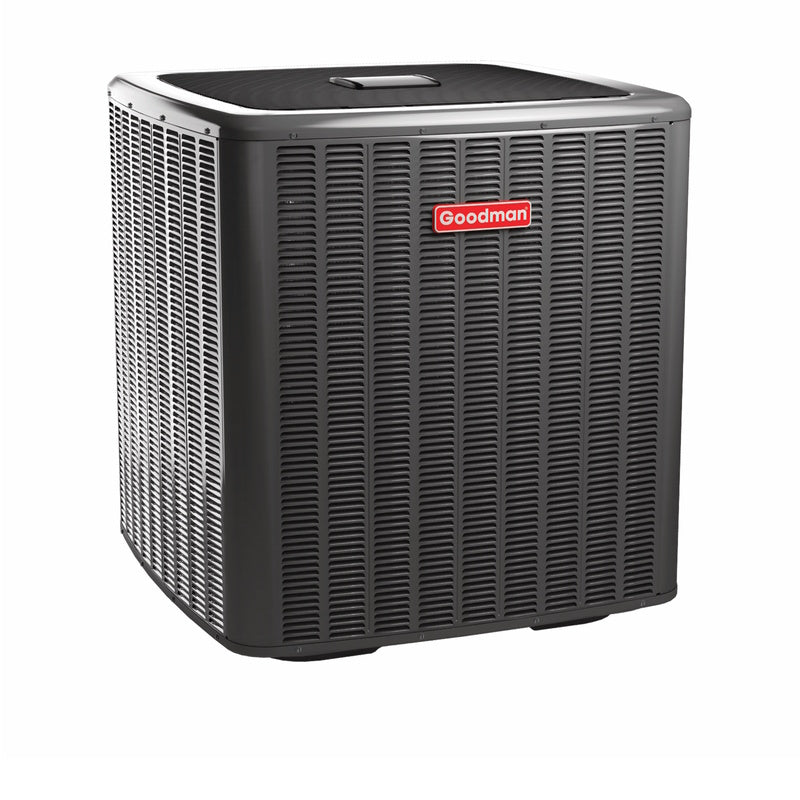

GSZV9 Condenser

Standard Features

• Variable-speed swing compressors
• High-density compressor sound blanket
• Integrated communicating ComfortBridge™ Technology
• Commissioning and diagnostics via indoor board Bluetooth with the CoolCloud™ phone and tablet application
• Goodman control algorithmic logic
• In communicating mode, only two lowvoltage wires to outdoor unit required
• Diagnostic indicator lights, seven-segment LED display, and fault code storage
• Field-selectable boost mode increases compressor speed during unusually high loads
• Quiet DC outdoor fan motor
• Fully charged for 15’ of tubing length
• Field-installed bi-flow filter drier
• Coil and ambient temperature sensors
• Suction pressure transducer (in cooling mode)
• Sweat connection service valves with easy access to gauge ports
• AHRI Certified; ETL Listed

Cabinet Features

• Heavy-gauge galvanized-steel cabinet
• Removable grille-style top design compliant with UL 60335-2-40
• Venturi for increased velocity of airflow
• Custom two-tone gray powder-paint finish
• 500-hour salt-spray tested
• Wire fan discharge grille
• Steel louver coil guard
• Top and side maintenance access
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

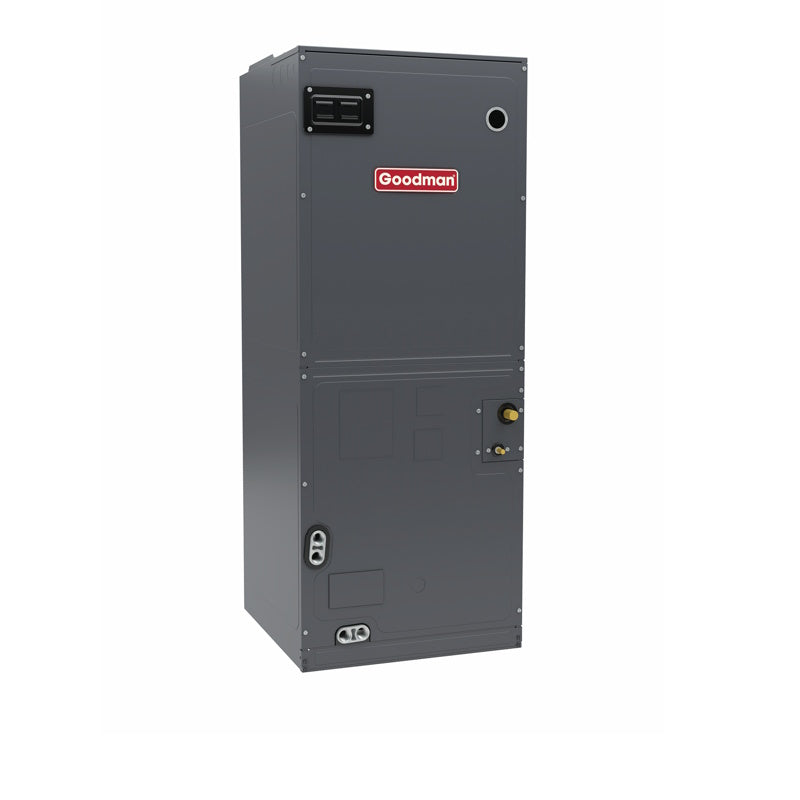

Goodman AMVE Air Handler

Standard Features

• Electronic Expansion Valve (EEV) for cooling and heat pump applications.
• Variable-speed ECM blower motor
• Suitable for operation with inverter-driven products
• Integrated communicating ComfortBridge™ Technology
• Commissioning and diagnostics via on board Bluetooth with the CoolCloud™ phone and tablet application
• Provides constant CFM over a wide range of static pressure conditions independent of duct system
• CFM indicator
• Provides adjustable low CFM for efficient fan-only operation
• All-aluminum evaporator coil
• Fault recall of six most recent faults
• Improved humidity and comfort control
• 3 kW – 25 kW electric heater kits
• AHRI certified; ETL listed

Cabinet Features

• Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
• Horizontal or vertical configuration capabilities
• 21" depth for easier attic access
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Screw-less sides and back helps to reduce condensation when installed in humid locations
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Glue-less cabinet insulation retention
• Tool-less filter access

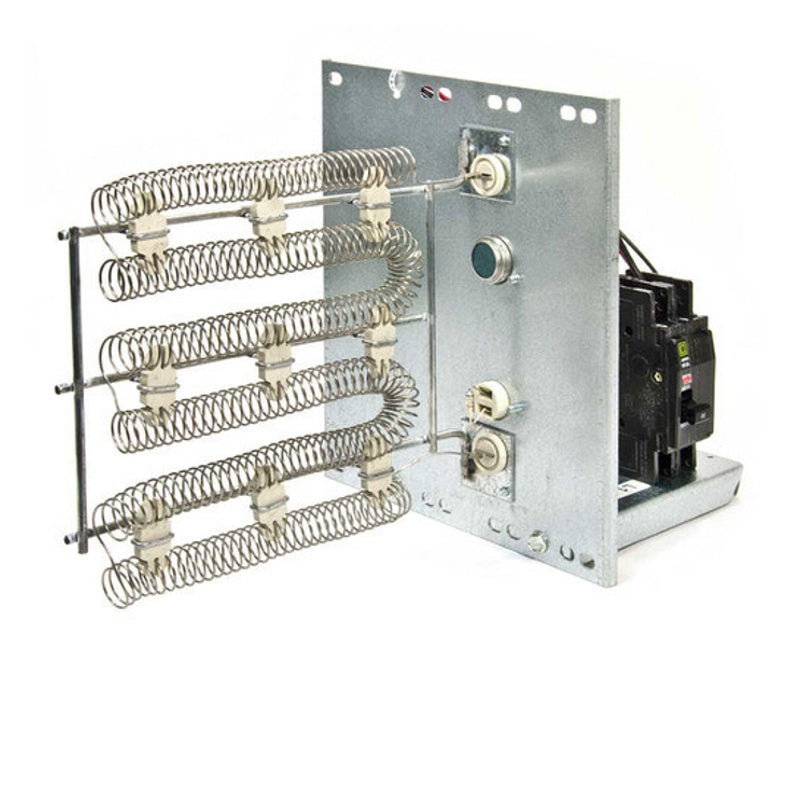

HKS Electric Heat Kits Product Features

• Sequencers for better temperature control
• Multiple branch circuit capability
• Completely assembled and tested
• Control circuitry arranged to readily permit staging
• Factory-installed circuit breakers available on specific models (See Electrical Data)
• Fuse link secondary high-temperature limit control
• Plug-in wiring harness for ease of installation into air handler
• Rust-resistant nickel chromium heat elements
• ETL Listed
