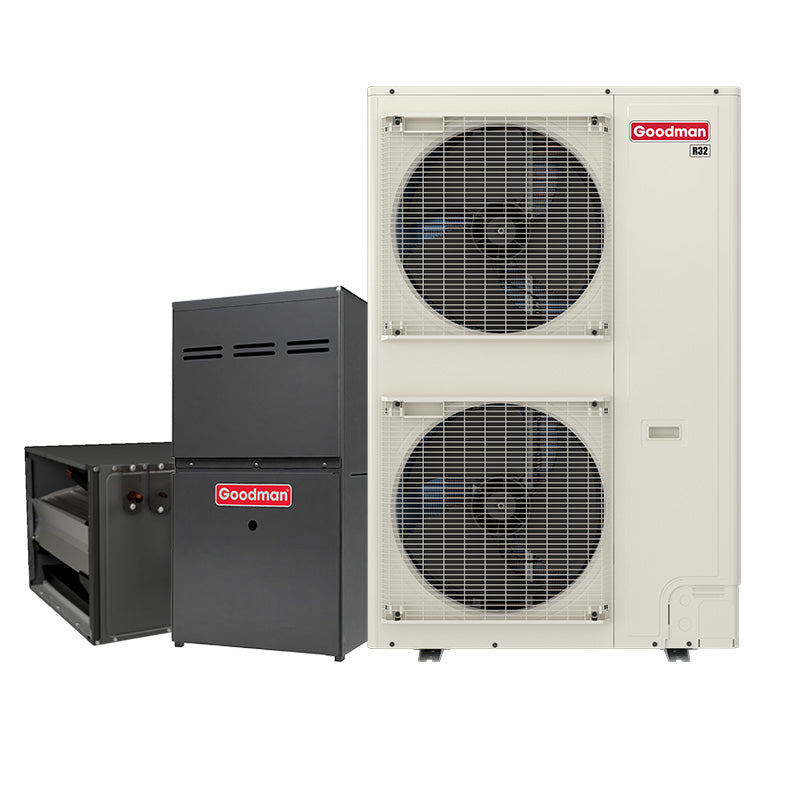

Goodman 5 Ton 16 SEER2 Dual Fuel Side Discharge Heat Pump & Gas Furnace System - Inverter Heat Pump, 80,000 BTU 80% AFUE 2-Stage Variable-Speed Horizontal Ultra-Low NOx Furnace, California & Colorado Compliant, R32

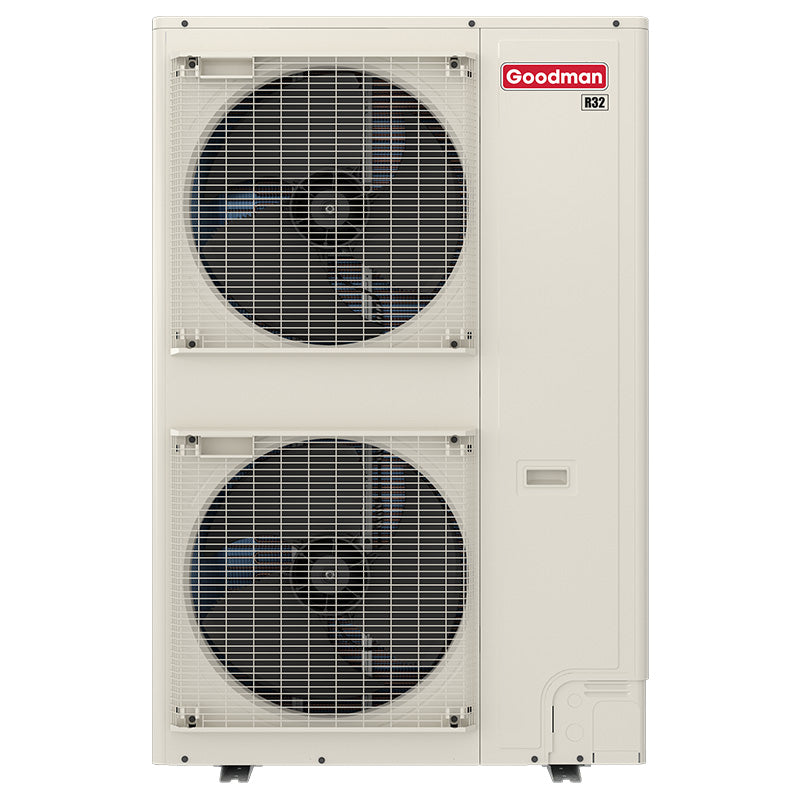

Goodman 5 Ton Variable-Speed Inverter Heat Pump Condenser – R-32 High-Efficiency Side Discharge Unit

High-Capacity 54,000 BTU Heating & Cooling with Cold-Climate Performance

The Goodman GZV9SA6010 5 Ton heat pump condenser is designed for large homes and commercial spaces that require strong, efficient year-round comfort. With up to 54,000 BTU cooling and heating capacity, this variable-speed inverter heat pump helps deliver steady indoor temperatures while optimizing energy use.

Engineered with R-32 refrigerant, cold-climate heating capability, and a space-saving side discharge cabinet, this Goodman heat pump is built for performance in demanding applications. Quiet operation, advanced diagnostics, and durable construction make it a reliable choice for property owners who want comfort, efficiency, and long-term value.

Features & Benefits

• 5 Ton capacity with up to 54,000 BTU cooling and heating performance
• Up to 21 SEER2 and 10.0 HSPF2 high-efficiency operation
• Variable-speed inverter compressor adjusts output for improved comfort
• Side discharge cabinet allows flexible installation in tighter outdoor spaces
• Quiet-mode operation with enhanced sound control design
• R-32 refrigerant for efficient modern performance
• Heating operation range down to -20°F
• Boost mode supports added capacity during high-demand conditions
• Built-in diagnostic lights, LED display, and fault code storage
• Heavy-gauge galvanized steel cabinet with corrosion-resistant protection

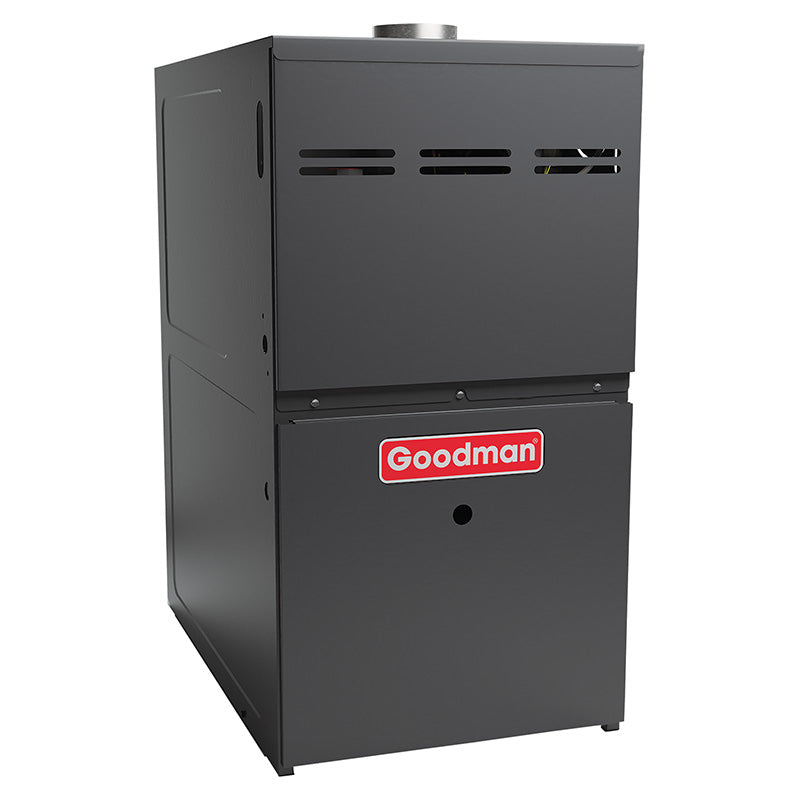

Goodman 80,000 BTU 80% AFUE Gas Furnace – GRVS800805CU

Powerful whole-home heating with advanced comfort technology and ultra-low emissions

The Goodman GRVS800805CU provides a robust 80,000 BTU heating output, making it an excellent choice for larger homes and light commercial spaces that require reliable performance. Featuring a variable-speed ECM blower motor, this furnace adjusts airflow smoothly and quietly, helping maintain even temperatures while improving indoor comfort and air quality.

Engineered for Ultra-Low NOx operation, this furnace complies with California’s strict emission standards and offers a durable stainless-steel tubular heat exchanger for long-lasting performance. Its 21-inch cabinet width delivers additional airflow capacity—supporting cooling systems up to 5 tons—while maintaining installation versatility with upflow or horizontal mounting options.

• 80,000 BTU heating capacity for larger homes and businesses
• 80% AFUE efficiency for dependable, cost-effective operation
• Variable-speed ECM blower ensures quieter operation and enhanced comfort
• Ultra-Low NOx compliant — ideal for SCAQMD and SJVUAPCD regions
• ComfortBridge™ communicating technology for smarter, optimized operation
• CoolCloud™ Bluetooth diagnostics streamline maintenance and troubleshooting
• Heavy-duty stainless steel tubular heat exchanger enhances durability and heat transfer
• Single-stage gas valve for straightforward, reliable heating
• Multi-position installation: Upflow or horizontal left/right
• 21” wide cabinet for higher airflow and compatibility with larger cooling systems
• Supports AC systems from 2–5 tons (per airflow ratings)

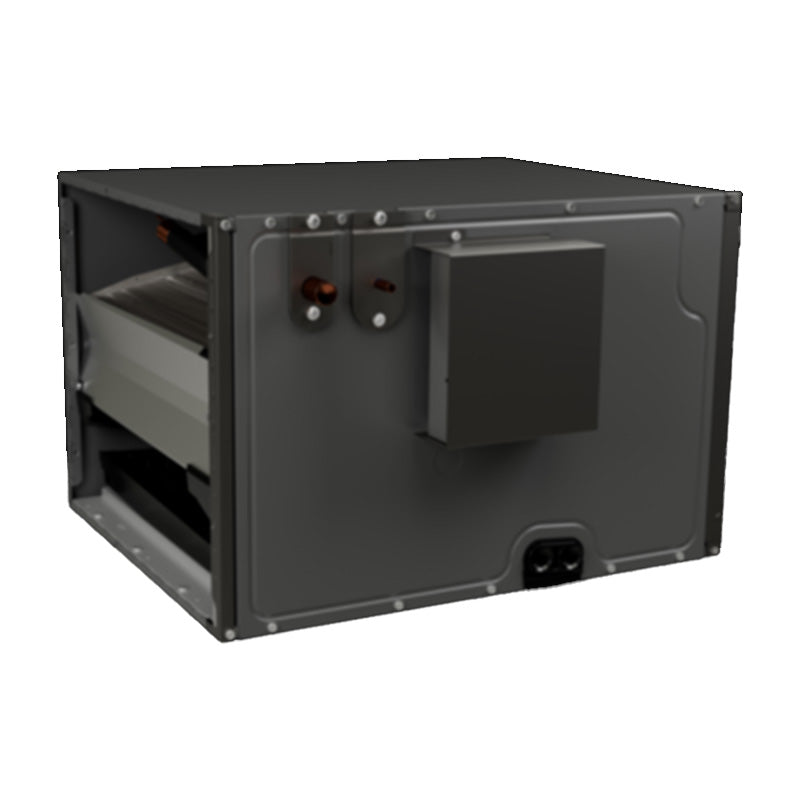

Goodman CHPEA6030C3 5 Ton R-32 Horizontal Evaporator Coil – 21" Cabinet

Maximum-Capacity Horizontal Coil with Precision EEV

The Goodman CHPEA Series horizontal evaporator coil is designed for high-efficiency R-32 air conditioning and heat pump systems. Built with an all-aluminum coil and a factory-installed Electronic Expansion Valve (EEV), it provides accurate refrigerant management, improved system efficiency, and long-lasting durability. Engineered specifically for horizontal airflow applications, the CHPEA coil is ideal for attic or crawlspace installations where space and configuration matter.

• Optimized for R-32 refrigerant systems
• Horizontal airflow design for attic or crawlspace installation
• Factory-installed Electronic Expansion Valve (EEV)
• All-aluminum evaporator coil construction
• Foil-faced insulation to reduce cabinet condensation
• Rust-resistant thermoplastic drain pan with secondary drain connections

GTST Overview

The Goodman GTST connected thermostat is designed to deliver the ultimate inverter experience when used with the Goodman SD system. Compatible with all Goodman communicating unitary equipment, it can connect to the Goodman Home app via Wi-Fi, allowing control from an iOS or Android phone or tablet. Additionally, the GTST supports voice control with Amazon Alexa or Google Assistant. For enhanced efficiency and comfort, homeowners can program up to four schedule events each day on a seven-day schedule.

Standard Features

• Compact, non-intrusive design suitable for most interior environments
• Multifunction push buttons labeled for mode, fan, set-point up, set-point down
• Wi-Fi-enabled connected thermostat that works with Goodman GTST home app (iOS and Android)
• Voice control by Amazon Alexa and Google Assistant
• Programmable schedule
• Built-in temperature and humidity sensors
• Indoor unit Control: Mode (Auto/Heat/Cool/Emergency Heat), Setpoint (Dual/Single), Fan Speed, Fan On/Auto (with minimum run time)
• LED Mode indicator for heating and cooling
• Dehumidification function (setup with Goodman GTST home app)
• Error and maintenance notifications
• Control and comfort functions: Away mode and geo-fencing
• Over-the-air software update capable (requires Wi-Fi connection)
• Compatible with Cloud Services (Future)
• Setup is possible within the cloud services app, via the commissioning tool. Setup using buttons is possible, but not recommended.

Technical Specifications

• Backlit, 3.5 inch MVA TFT LCD display
• Bi-directional communications protocol for controlling HVAC system
• Multi-language support: English, Spanish, French (Goodman GTST home app only)
• 1 Auxiliary output configurable as a secondary heat source, dehumidifier. or humidifier
• FCC Certified/UL Listed
• An optional trim plate (PSPAC-WPM-L) is available.

One Touch Overview - DTST-TOU-A

The Daikin One Touch smart thermostat is the latest addition to the Daikin One ecosystem, joining the Daikin One smart thermostat as a control solution for Daikin's communicating unitary equipment.

Standard Features

• Simple, elegant industrial design
• Capacitive touchscreen user interface
• Wi-Fi-enabled smart thermostat with iOS and Android app control
• Voice control by Amazon Alexa and Google Assistant
• Control and comfort functions: Away mode, geo-fencing
• Outdoor environment monitoring: outdoor temperature, outdoor humidity, and weather forecast
• Compatible with Daikin One home air monitor for IAQ visualization
• Error and service notifications
• Multi-language support: English, Spanish, French
• Programmable 4-event schedule with adjustable hold function
• Compatible with Daikin One cloud services
• Open API compatible for home control systems such as Control4 and Crestron
• Compliant to California Title 24 (OCST listed), FCC Certified, and UL Listed

Technical Specifications

• Capacitive touch screen
• Backlit, 3.5 inch MVA TFT LCD display
• Bi-directional communications protocol for controlling HVAC system
• Bubble level (to aid installation)
• 640 × 480 pixels × 24 bit RGB (full color screen)
• Wi-Fi
• Operation Temperature: 32°F to 120°F
