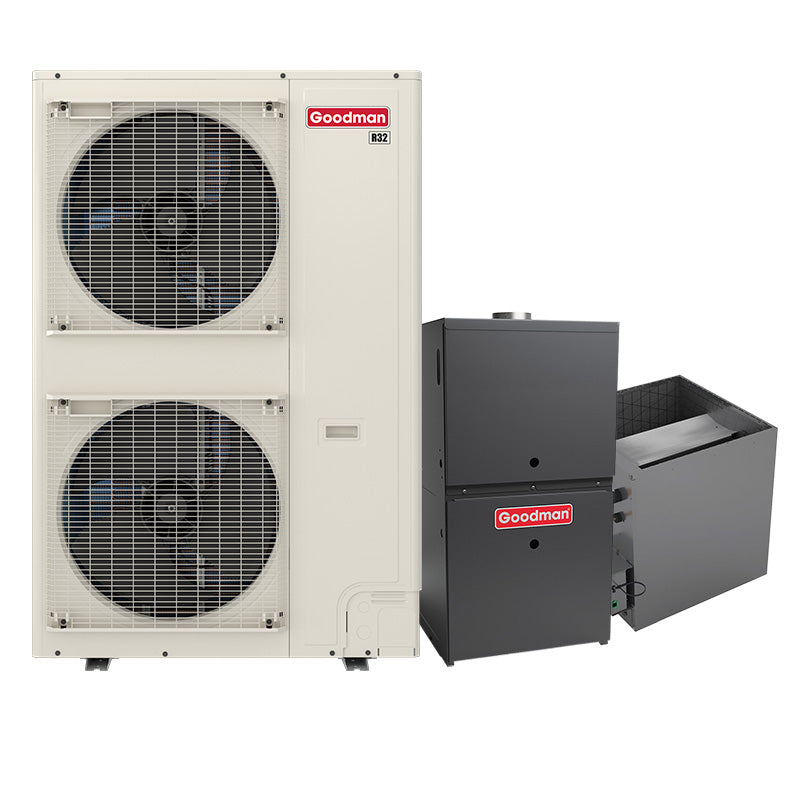

Goodman 5 Ton 17 SEER2 Dual Fuel Side Discharge Heat Pump & Gas Furnace System - Inverter Heat Pump, 80,000 BTU 80% AFUE 2-Stage Variable-Speed Upflow Furnace, , R32

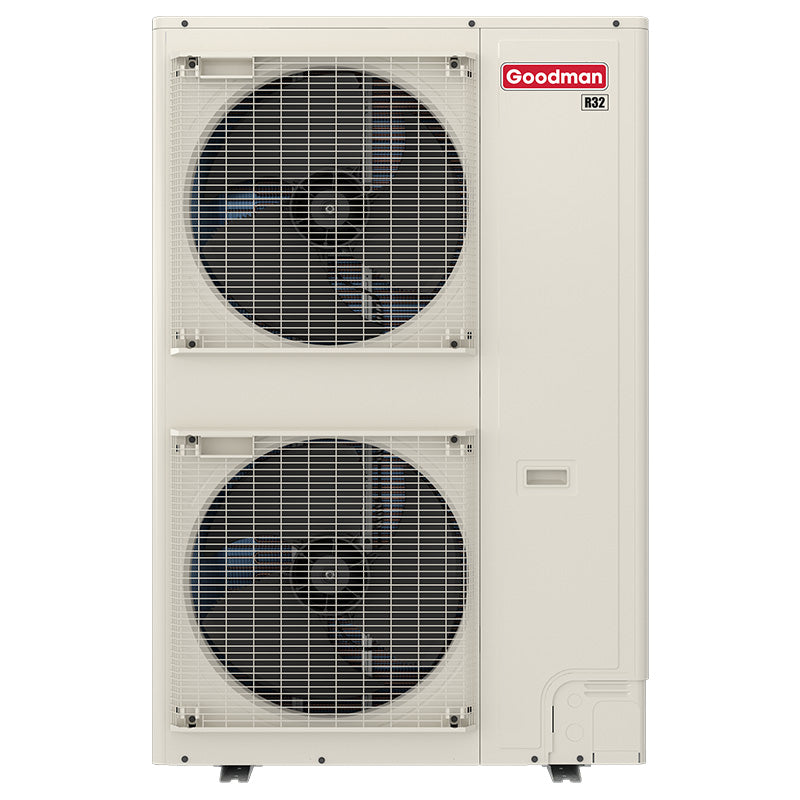

Goodman 5 Ton Variable-Speed Inverter Heat Pump Condenser – R-32 High-Efficiency Side Discharge Unit

High-Capacity 54,000 BTU Heating & Cooling with Cold-Climate Performance

The Goodman GZV9SA6010 5 Ton heat pump condenser is designed for large homes and commercial spaces that require strong, efficient year-round comfort. With up to 54,000 BTU cooling and heating capacity, this variable-speed inverter heat pump helps deliver steady indoor temperatures while optimizing energy use.

Engineered with R-32 refrigerant, cold-climate heating capability, and a space-saving side discharge cabinet, this Goodman heat pump is built for performance in demanding applications. Quiet operation, advanced diagnostics, and durable construction make it a reliable choice for property owners who want comfort, efficiency, and long-term value.

Features & Benefits

• 5 Ton capacity with up to 54,000 BTU cooling and heating performance
• Up to 21 SEER2 and 10.0 HSPF2 high-efficiency operation
• Variable-speed inverter compressor adjusts output for improved comfort
• Side discharge cabinet allows flexible installation in tighter outdoor spaces
• Quiet-mode operation with enhanced sound control design
• R-32 refrigerant for efficient modern performance
• Heating operation range down to -20°F
• Boost mode supports added capacity during high-demand conditions
• Built-in diagnostic lights, LED display, and fault code storage
• Heavy-gauge galvanized steel cabinet with corrosion-resistant protection

GRVT800805CN Overview

Smart, Quiet Heating with the Goodman GRVT80 Gas Furnace

The Goodman GRVT80 is a high-performance, two-stage, variable-speed gas furnace designed to deliver consistent warmth and energy efficiency. With up to 80% AFUE (Annual Fuel Utilization Efficiency), this furnace ensures that most of your fuel is converted into usable heat—helping you save on energy bills while staying comfortable all winter long.

Advanced ComfortBridge™ Technology for Smarter Control

Equipped with ComfortBridge™ technology, the GRVT80 continuously monitors and adjusts performance for optimal comfort and efficiency. Its variable-speed ECM blower motor and two-speed draft blower provide quiet, even airflow throughout your home, while the SureStart® silicon nitride igniter and self-diagnostic control board ensure reliable operation and easy maintenance.

Durable, Flexible, and Backed by Warranty

Built with a heavy-duty aluminized-steel heat exchanger and a fully insulated steel cabinet, the GRVT80 is engineered for long-lasting performance and quiet operation. It supports multi-position installation (upflow or horizontal), making it ideal for a variety of home layouts. Enjoy peace of mind with a Lifetime Heat Exchanger Limited Warranty, 10-Year Parts Warranty, and 10-Year Unit Replacement Warranty (with registration).

Standard Features

• Integrated communicating ComfortBridge™ technology
• Two-stage gas valve provides quiet, economical heating
• Commissioning and diagnostics via on board Bluetooth with the CoolCloud™ phone and tablet application
• Efficient and quiet variable-speed ECM circulator motor gently ramps up or down according to heating or cooling demand
• SureStart® Silicon Nitride igniter designed for long igniter life
• Self-diagnostic control board with constant memory fault code history output to a triple 7-segment display
• Low constant fan speed circulates air throughout the home
• Quiet, two-speed induced draft blower
• California Low NOx emissions-compliant models available
• Can no longer be installed in California’s South Coast Air Quality Management District (SCAQMD) on or after October 1, 2019.
• AHRI Certified; ETL Listed

Cabinet Features

• Fully insulated, heavy-gauge steel cabinet with durable baked-enamel finish
• Multi-position installation: upflow, horizontal left or right
• Removable bottom for side- or bottom-return applications
• Convenient left or right connection for gas/electric service
• Cabinet air leakage ≤ 2%
• Coil and furnace fit flush for most installations

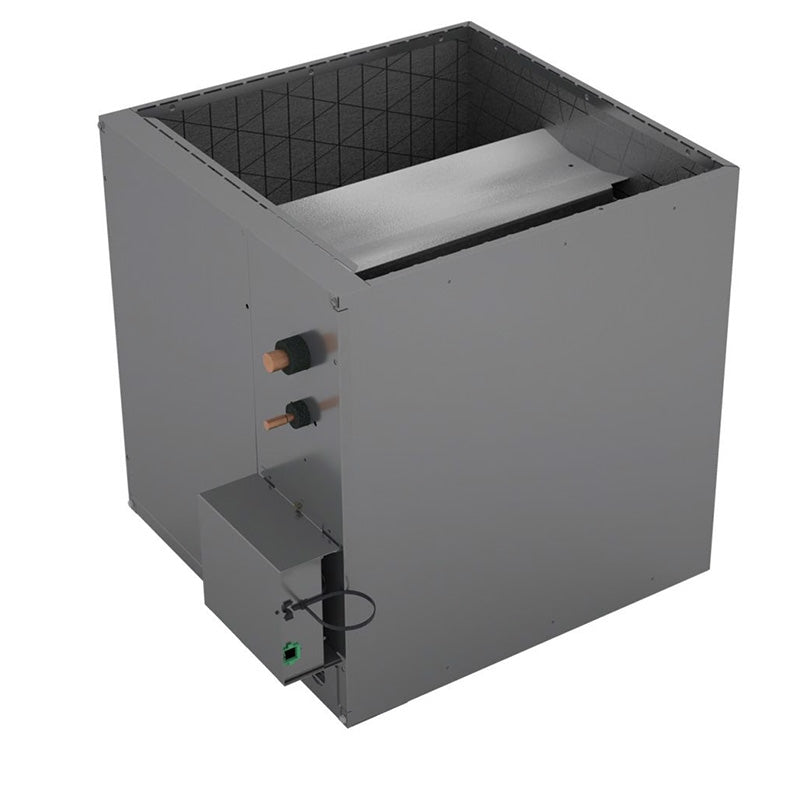

Goodman CAPEA6030C3 5 Ton R-32 Cased Upflow/Downflow Evaporator Coil – 21" Cabinet

Maximum-Capacity Aluminum Coil with Precision Electronic Expansion Valve

The Goodman CAPEA Series indoor evaporator coil is engineered for high-efficiency R-32 air conditioning and heat pump systems. Featuring an all-aluminum coil design and a factory-installed Electronic Expansion Valve (EEV), this coil delivers precise refrigerant control, improved efficiency, and dependable long-term performance. Designed for upflow or downflow installation, the CAPEA coil integrates seamlessly with compatible Goodman and Daikin outdoor units for optimized system operation.

• Optimized for R-32 refrigerant systems
• Factory-installed Electronic Expansion Valve (EEV)
• All-aluminum evaporator coil construction
• Upflow and downflow installation versatility
• Rust-resistant thermoplastic drain pan with secondary drain connections
• Foil-faced insulation to reduce cabinet condensation

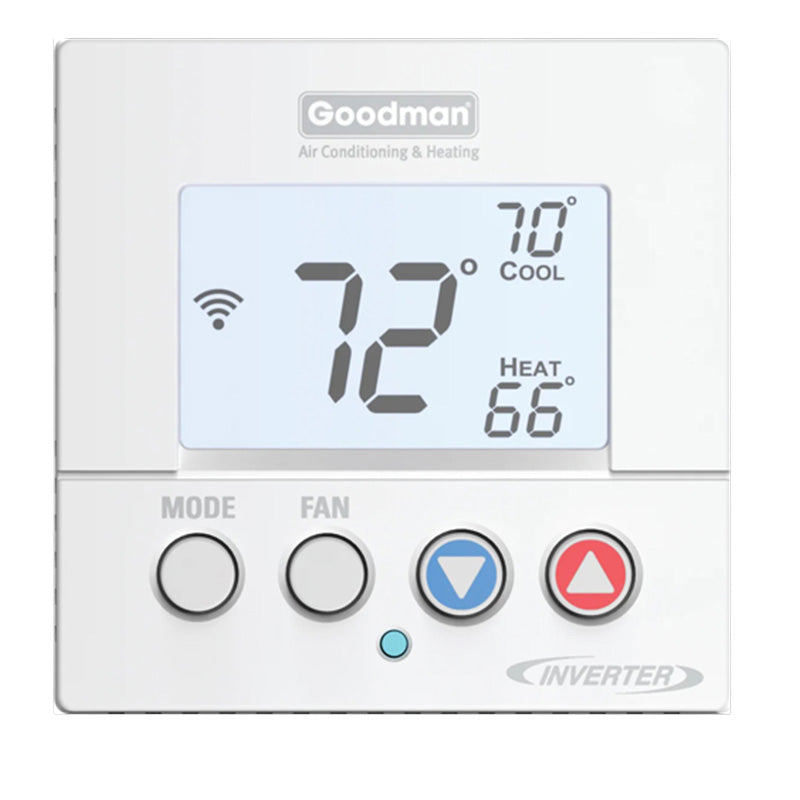

GTST Overview

The Goodman GTST connected thermostat is designed to deliver the ultimate inverter experience when used with the Goodman SD system. Compatible with all Goodman communicating unitary equipment, it can connect to the Goodman Home app via Wi-Fi, allowing control from an iOS or Android phone or tablet. Additionally, the GTST supports voice control with Amazon Alexa or Google Assistant. For enhanced efficiency and comfort, homeowners can program up to four schedule events each day on a seven-day schedule.

Standard Features

• Compact, non-intrusive design suitable for most interior environments
• Multifunction push buttons labeled for mode, fan, set-point up, set-point down
• Wi-Fi-enabled connected thermostat that works with Goodman GTST home app (iOS and Android)
• Voice control by Amazon Alexa and Google Assistant
• Programmable schedule
• Built-in temperature and humidity sensors
• Indoor unit Control: Mode (Auto/Heat/Cool/Emergency Heat), Setpoint (Dual/Single), Fan Speed, Fan On/Auto (with minimum run time)
• LED Mode indicator for heating and cooling
• Dehumidification function (setup with Goodman GTST home app)
• Error and maintenance notifications
• Control and comfort functions: Away mode and geo-fencing
• Over-the-air software update capable (requires Wi-Fi connection)
• Compatible with Cloud Services (Future)
• Setup is possible within the cloud services app, via the commissioning tool. Setup using buttons is possible, but not recommended.

Technical Specifications

• Backlit, 3.5 inch MVA TFT LCD display
• Bi-directional communications protocol for controlling HVAC system
• Multi-language support: English, Spanish, French (Goodman GTST home app only)
• 1 Auxiliary output configurable as a secondary heat source, dehumidifier. or humidifier
• FCC Certified/UL Listed
• An optional trim plate (PSPAC-WPM-L) is available.

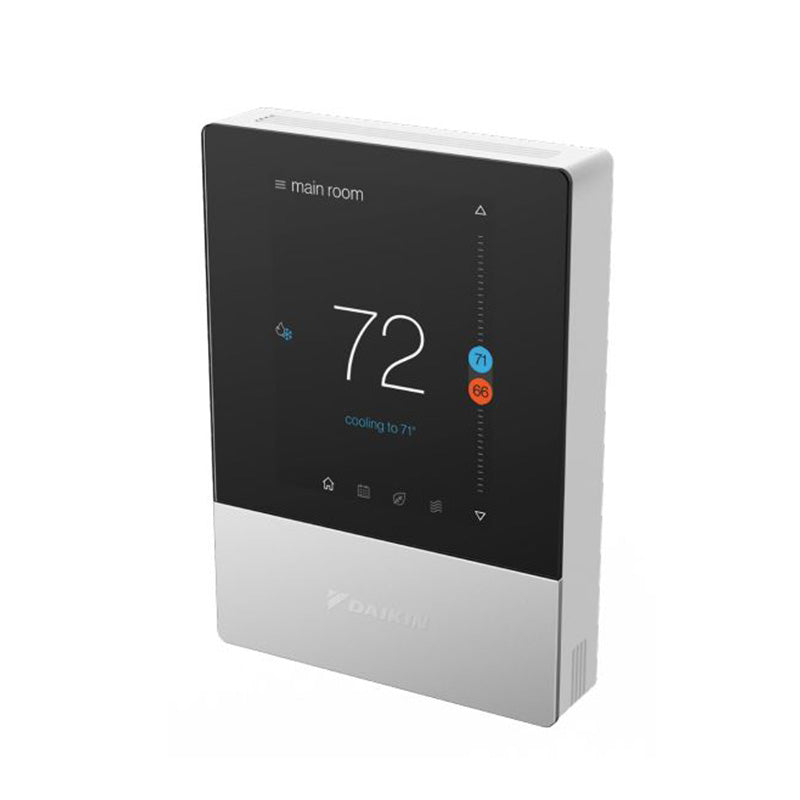

One Touch Overview - DTST-TOU-A

The Daikin One Touch smart thermostat is the latest addition to the Daikin One ecosystem, joining the Daikin One smart thermostat as a control solution for Daikin's communicating unitary equipment.

Standard Features

• Simple, elegant industrial design
• Capacitive touchscreen user interface
• Wi-Fi-enabled smart thermostat with iOS and Android app control
• Voice control by Amazon Alexa and Google Assistant
• Control and comfort functions: Away mode, geo-fencing
• Outdoor environment monitoring: outdoor temperature, outdoor humidity, and weather forecast
• Compatible with Daikin One home air monitor for IAQ visualization
• Error and service notifications
• Multi-language support: English, Spanish, French
• Programmable 4-event schedule with adjustable hold function
• Compatible with Daikin One cloud services
• Open API compatible for home control systems such as Control4 and Crestron
• Compliant to California Title 24 (OCST listed), FCC Certified, and UL Listed

Technical Specifications

• Capacitive touch screen
• Backlit, 3.5 inch MVA TFT LCD display
• Bi-directional communications protocol for controlling HVAC system
• Bubble level (to aid installation)
• 640 × 480 pixels × 24 bit RGB (full color screen)
• Wi-Fi
• Operation Temperature: 32°F to 120°F
