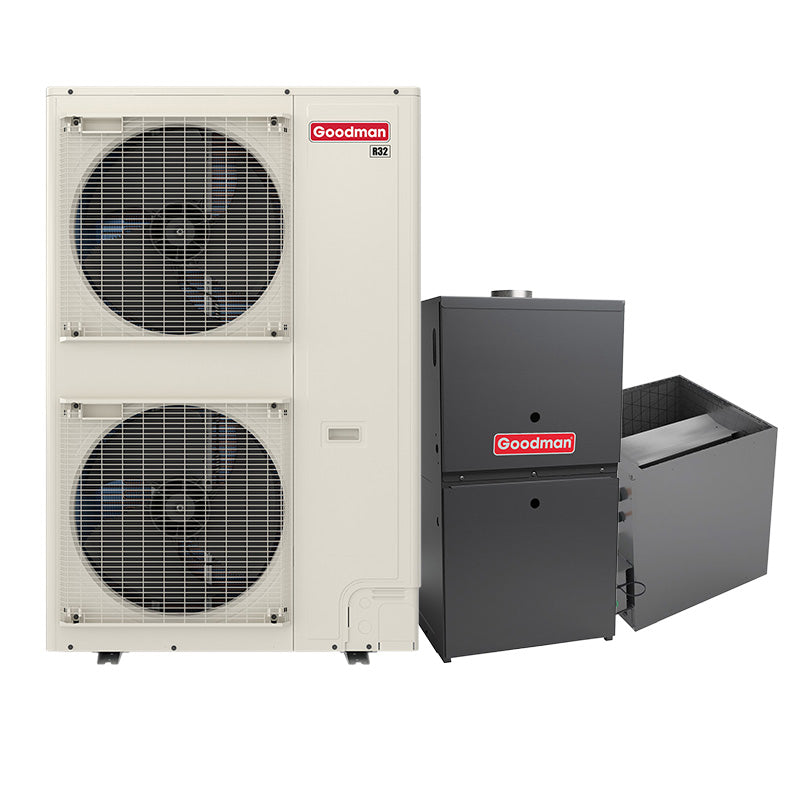

Goodman 5 Ton 16 SEER2 Variable-Speed Inverter AC & Gas Furnace System - 80,000 BTU 80% AFUE Variable-Speed Low NOx Downflow Gas Furnace, California Compliant, R32

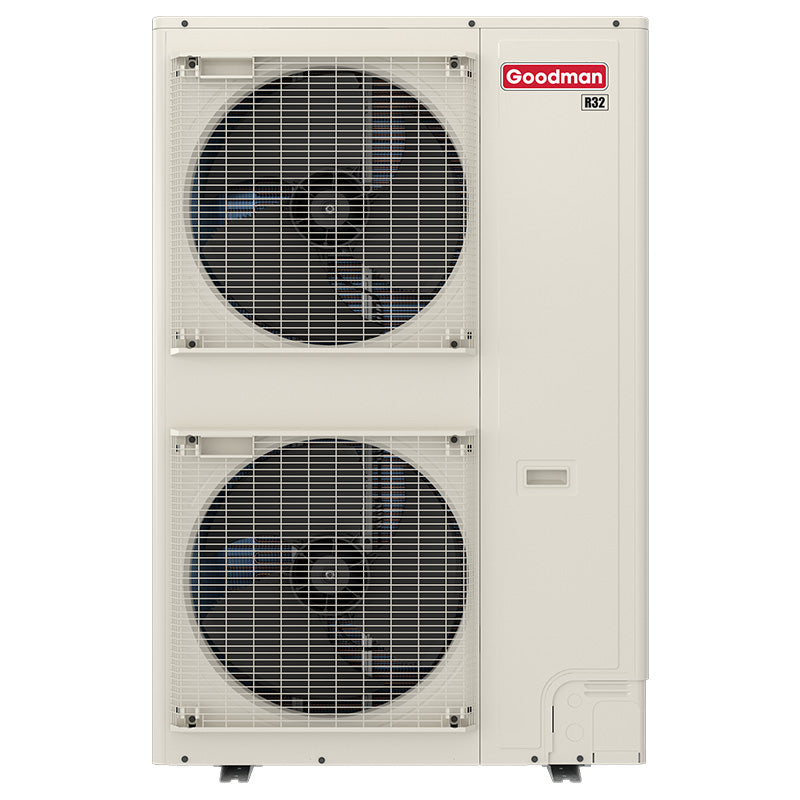

Goodman 5 Ton 19 SEER2 Variable-Speed Side Discharge AC Condenser – R32

Powerful Inverter Technology for Large Homes

Engineered for large homes and demanding climates, the Goodman GXV9SA6010 offers maximum cooling capacity with precise inverter-driven control. It delivers strong performance during extreme heat while dialing back to save energy during lighter loads. Featuring quiet operation, flexible side-discharge installation, and R-32 refrigerant, this system balances power, efficiency, and long-term reliability.

• Up to 19 SEER2 energy efficiency
• High-capacity 5-ton cooling performance
• Variable-speed inverter-driven compressor
• Quiet mode operation for enhanced comfort
• R-32 refrigerant for improved environmental performance

Why Choose This AC Condenser?

• Lower Energy Bills: Variable-speed inverter technology adjusts cooling output as needed, helping reduce energy use compared to traditional single-stage units.
• More Consistent Comfort: The inverter-driven AC condenser runs longer at lower speeds to minimize temperature swings and improve indoor comfort.
• Quiet Outdoor Operation: Advanced sound-reducing design and quiet operation help keep outdoor noise levels low.
• Space-Saving Side Discharge Design: The compact side-discharge condenser allows flexible installation in tight spaces and modern home layouts.
• Environmentally Responsible Cooling: Uses R-32 refrigerant, which offers improved efficiency and a lower environmental impact compared to older refrigerants.

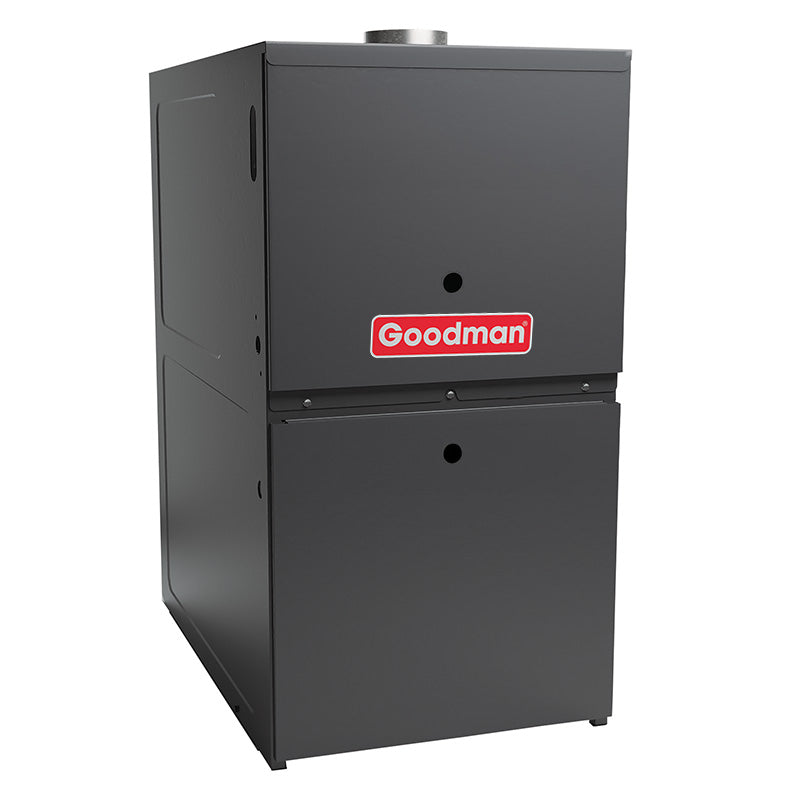

GDVT800805CX Overview

Efficient, Quiet Heating with the Goodman GDVT80 Gas Furnace

The Goodman GDVT80 is a high-efficiency, two-stage, variable-speed gas furnace that delivers consistent warmth and energy savings with up to 80% AFUE. Designed for downflow and horizontal installations, this furnace is ideal for homes needing flexible installation options without sacrificing performance. Its variable-speed ECM blower motor adjusts airflow smoothly, reducing energy use and maintaining even temperatures throughout your home.

Smart Comfort with ComfortBridge™ Technology

Equipped with ComfortBridge™ technology, the GDVT80 continuously monitors system performance and adjusts settings for optimal comfort and efficiency. The SureStart® silicon nitride igniter, self-diagnostic control board, and quiet two-speed draft blower work together to ensure reliable, low-maintenance operation. This smart system also supports Bluetooth diagnostics via the CoolCloud™ app, making service and setup easier for technicians.

Built to Last with Industry-Leading Warranties

The GDVT80 features a heavy-duty aluminized-steel tubular heat exchanger and a fully insulated, heavy-gauge steel cabinet for durability and quiet operation. It’s backed by a Lifetime Heat Exchanger Limited Warranty, 10-Year Parts Warranty, and a 10-Year Unit Replacement Warranty (with registration), giving you long-term peace of mind. Proudly designed, engineered, and assembled in the USA, the GDVT80 is a dependable choice for energy-efficient home heating.

Standard Features

• Integrated communicating ComfortBridge™ technology
• Two-stage gas valve provides quiet, economical heating
• Commissioning and diagnostics via on board Bluetooth with the CoolCloud™ phone and tablet application
• Efficient and quiet variable-speed ECM circulator motor gently ramps up or down according to heating or cooling demand
• SureStart® Silicon Nitride igniter designed for long igniter life
• Self-diagnostic control board with constant memory fault code history output to a triple 7-segment display
• Low constant fan speed circulates air throughout the home
• Quiet, two-speed induced draft blower
• California Low NOx emissions-compliant models available
• Can no longer be installed in California’s South Coast Air Quality Management District (SCAQMD) on or after October 1, 2019.
• AHRI Certified; ETL Listed

Cabinet Features

• Fully insulated, heavy-gauge steel cabinet with durable baked-enamel finish
• Multi-position installation: upflow, horizontal left or right
• Removable bottom for side- or bottom-return applications
• Convenient left or right connection for gas/electric service
• Cabinet air leakage ≤ 2%
• Coil and furnace fit flush for most installations

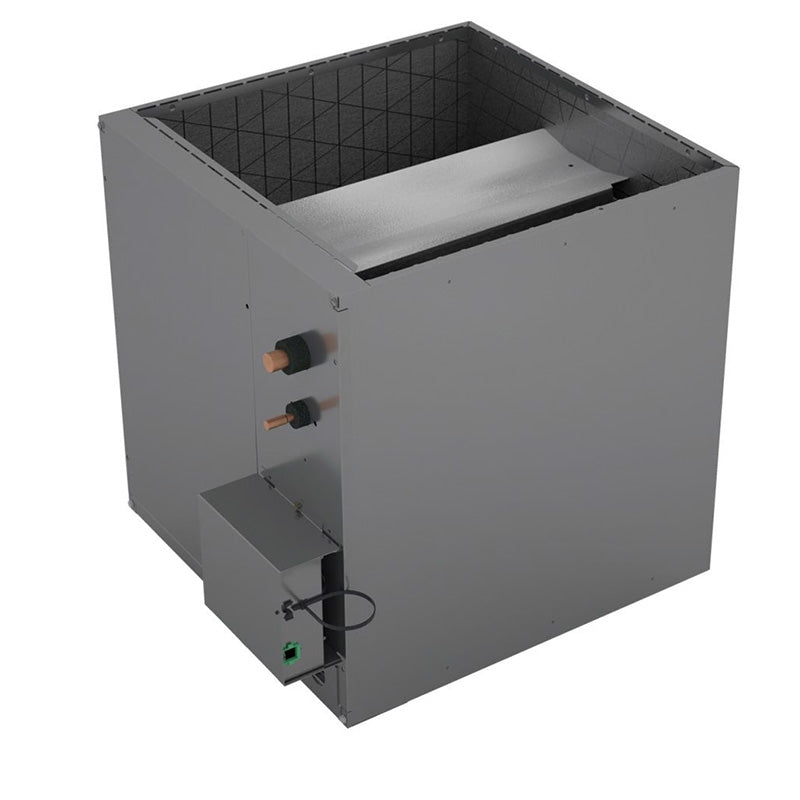

Goodman CAPEA6030C3 5 Ton R-32 Cased Upflow/Downflow Evaporator Coil – 21" Cabinet

Maximum-Capacity Aluminum Coil with Precision Electronic Expansion Valve

The Goodman CAPEA Series indoor evaporator coil is engineered for high-efficiency R-32 air conditioning and heat pump systems. Featuring an all-aluminum coil design and a factory-installed Electronic Expansion Valve (EEV), this coil delivers precise refrigerant control, improved efficiency, and dependable long-term performance. Designed for upflow or downflow installation, the CAPEA coil integrates seamlessly with compatible Goodman and Daikin outdoor units for optimized system operation.

• Optimized for R-32 refrigerant systems
• Factory-installed Electronic Expansion Valve (EEV)
• All-aluminum evaporator coil construction
• Upflow and downflow installation versatility
• Rust-resistant thermoplastic drain pan with secondary drain connections
• Foil-faced insulation to reduce cabinet condensation

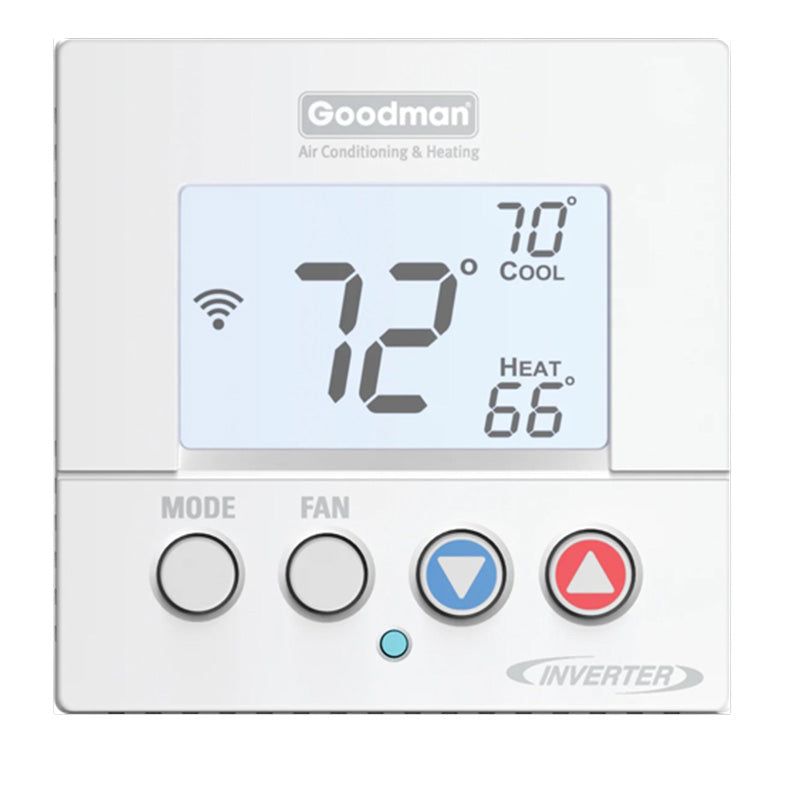

GTST Overview

The Goodman GTST connected thermostat is designed to deliver the ultimate inverter experience when used with the Goodman SD system. Compatible with all Goodman communicating unitary equipment, it can connect to the Goodman Home app via Wi-Fi, allowing control from an iOS or Android phone or tablet. Additionally, the GTST supports voice control with Amazon Alexa or Google Assistant. For enhanced efficiency and comfort, homeowners can program up to four schedule events each day on a seven-day schedule.

Standard Features

• Compact, non-intrusive design suitable for most interior environments
• Multifunction push buttons labeled for mode, fan, set-point up, set-point down
• Wi-Fi-enabled connected thermostat that works with Goodman GTST home app (iOS and Android)
• Voice control by Amazon Alexa and Google Assistant
• Programmable schedule
• Built-in temperature and humidity sensors
• Indoor unit Control: Mode (Auto/Heat/Cool/Emergency Heat), Setpoint (Dual/Single), Fan Speed, Fan On/Auto (with minimum run time)
• LED Mode indicator for heating and cooling
• Dehumidification function (setup with Goodman GTST home app)
• Error and maintenance notifications
• Control and comfort functions: Away mode and geo-fencing
• Over-the-air software update capable (requires Wi-Fi connection)
• Compatible with Cloud Services (Future)
• Setup is possible within the cloud services app, via the commissioning tool. Setup using buttons is possible, but not recommended.

Technical Specifications

• Backlit, 3.5 inch MVA TFT LCD display
• Bi-directional communications protocol for controlling HVAC system
• Multi-language support: English, Spanish, French (Goodman GTST home app only)
• 1 Auxiliary output configurable as a secondary heat source, dehumidifier. or humidifier
• FCC Certified/UL Listed
• An optional trim plate (PSPAC-WPM-L) is available.

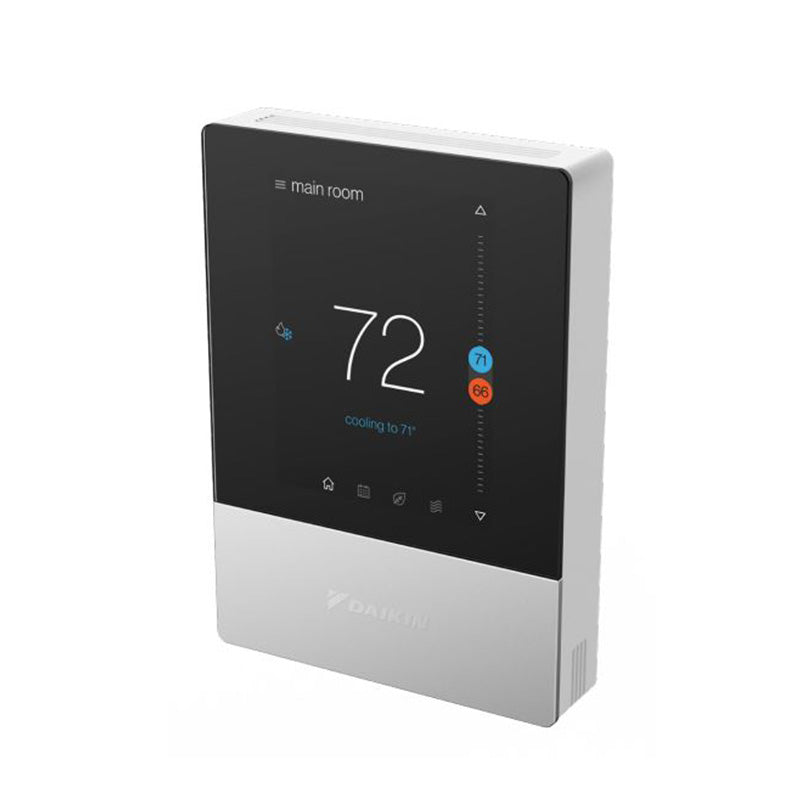

One Touch Overview - DTST-TOU-A

The Daikin One Touch smart thermostat is the latest addition to the Daikin One ecosystem, joining the Daikin One smart thermostat as a control solution for Daikin's communicating unitary equipment.

Standard Features

• Simple, elegant industrial design
• Capacitive touchscreen user interface
• Wi-Fi-enabled smart thermostat with iOS and Android app control
• Voice control by Amazon Alexa and Google Assistant
• Control and comfort functions: Away mode, geo-fencing
• Outdoor environment monitoring: outdoor temperature, outdoor humidity, and weather forecast
• Compatible with Daikin One home air monitor for IAQ visualization
• Error and service notifications
• Multi-language support: English, Spanish, French
• Programmable 4-event schedule with adjustable hold function
• Compatible with Daikin One cloud services
• Open API compatible for home control systems such as Control4 and Crestron
• Compliant to California Title 24 (OCST listed), FCC Certified, and UL Listed

Technical Specifications

• Capacitive touch screen
• Backlit, 3.5 inch MVA TFT LCD display
• Bi-directional communications protocol for controlling HVAC system
• Bubble level (to aid installation)
• 640 × 480 pixels × 24 bit RGB (full color screen)
• Wi-Fi
• Operation Temperature: 32°F to 120°F
