Goodman Furnace And Air Conditioner 4 Ton 15.2 SEER2 AC With 80000 BTU 80% AFUE Two Stage Multi-Speed ECM Gas Furnace System - Low NOX For California Downflow | R32

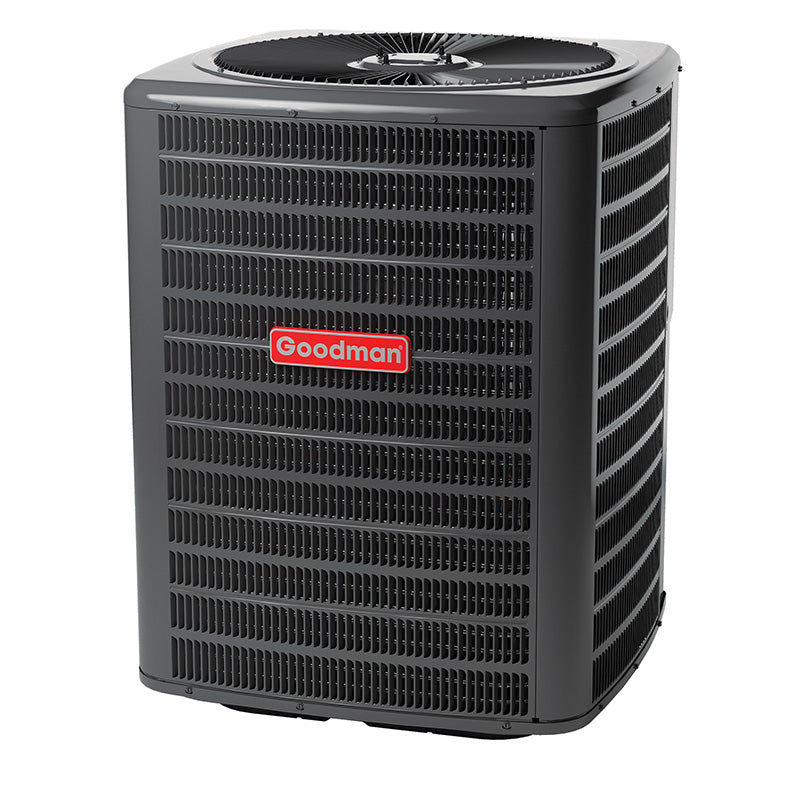

GLXS5B Overview

Standard Features

• High-Efficiency Scroll Compressor
• Factory-installed filter drier
• Fully charged for 15' of tubing length
• 5mm diameter copper tube/ enhanced aluminum fin coil
• Factory-installed filter drier
• Sweat connection service valves with easy access to gauge ports
• Enclosed contactor
• High-pressure switch
• Ground lug connection
• Capacitors with extended life
• AHRI Certified
• ETL Listed

Cabinet Features

• Removable grille-style top design compliant with UL 60335-2-40
• Venturi for increased velocity of airflow
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Wire fan discharge grille
• Steel louver coil guard
• Top and side maintenance access
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

GD9T80 Overview

Standard Features

• Two-stage gas valve provides quiet, economical heating
• Efficient and quiet multi-speed ECM circulator motor
• SureStart^™ Silicon Nitride igniter designed for long igniter life
• Self-diagnostic control board
• Low constant fan speed circulates air throughout the home
• Quiet, two-speed induced draft blower
• California Low NOx emissions-compliant models available
• Can not be installed in California’s South Coast AirQuality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD).
• AHRI Certified; ETL Listed

Cabinet Features

• Fully insulated, heavy-gauge steel cabinet with durable baked-enamel finish
• Multi-position installation:
  • GR9T80: upflow, horizontal left or right
  • GD9T80: downflow, horizontal left or right
• Removable bottom for side- or bottom-return applications
• Convenient left or right connection for gas/electric service
• Cabinet air leakage ≤ 2%
• Coil and furnace fit flush for most installations

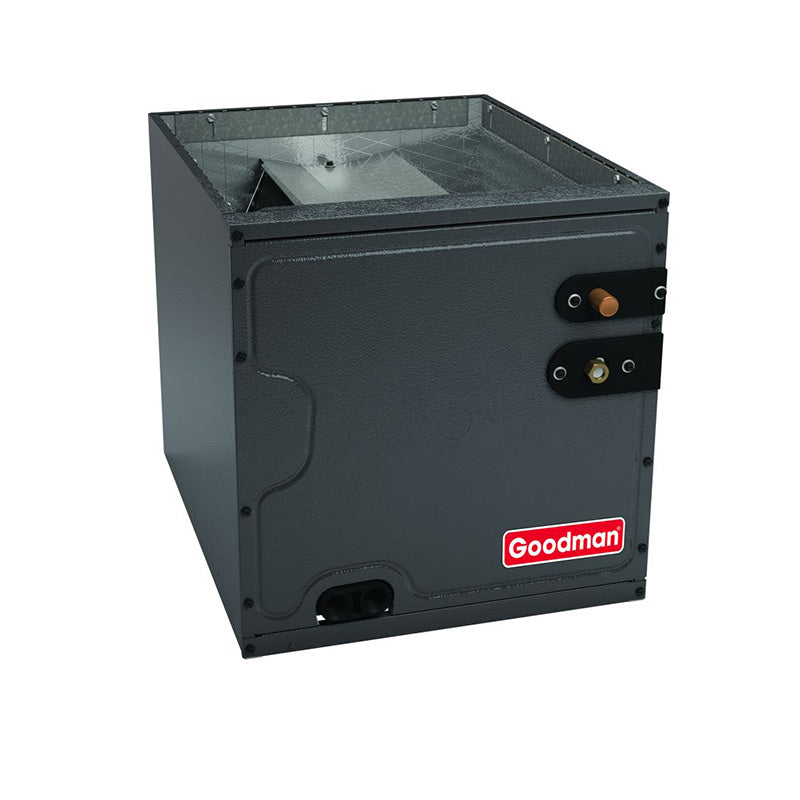

CAPTA Overview

Standard Features

• All-Aluminum evaporator coil
• Optimized for use with R-32 refrigerant including circuits and manifolds
• R-32 sensor designed for the life span of the coil
• CAPTA and CHPTA models feature factoryinstalled thermal expansion valves for cooling and heat pump applications
• Standardized copper suction tube stub length
• Vertical and horizontal models available
• 21" depth for easier attic access
• CAPTA and CHPTA models include a single front access panel
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Rust resistant, thermoplastic drain pans featuring a low water-retention design
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
• UV-resistant drain pan
• AHRI certified; ETL listed

Note: Do not use these coils on oil furnaces or any applications where the temperature on the drain pan may exceed 300° F. If these coils are applied with an oil furnace or another application where high temperatures threaten or jeopardize the durability of the drain pan, you must replace the factory-installed drain pan with a high-temperature drain pan. High-temperature drain pan kits are available as field-installed accessories.
