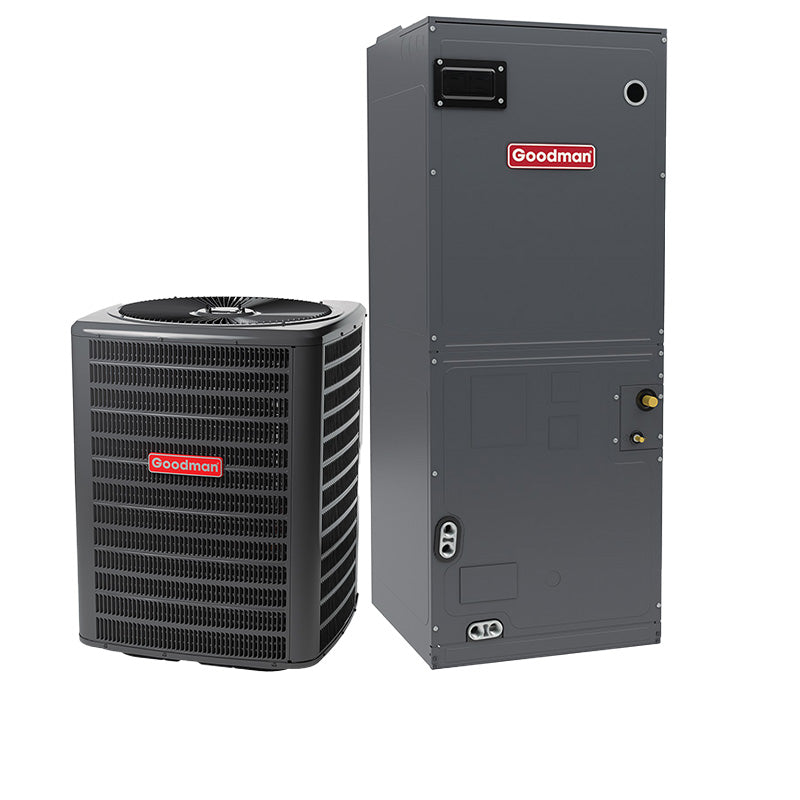

Goodman Up To 16.5 SEER2 R32 Air Conditioning AMST With Electric Heat System

Goodman R32 Up To 16.5 SEER2 Cooling Only Condenser GLXS5B Series

Goodman R32 Multi-Position ECM-Based Air Handler With Internal TXV AMST Series

Goodman R32 1.5 Ton 15.2 SEER2 Cooling Only Split System

Name: Goodman R32 1.5 Ton 15.2 SEER2 Cooling Only Split System
Brand: AC Direct
SKU: 3735
Availability: InStock

SKU: 3735

UPC: 647379452308

Today’s Special Price $3,368.25

~~$3,905.21~~

Sizing help

Included

2 Items

Condenser

1 × Goodman 1.5 Ton Up To 16.5 SEER2 R32 High-Efficiency Cooling Only Condenser (GLXS5BA1810)
~~$2,270.21~~ $1,958.06
~~$2,270.21~~ $1,958.06
Air Handler

1 × Goodman 2.5 Ton R32 Multi-Position ECM-Based Air Handler With Internal TXV (AMST30BU1300)
~~$1,635.00~~ $1,410.19
~~$1,635.00~~ $1,410.19

Extended Labor Warranty

10 Year Labor Warranty — $995.00 5 Year Labor Warranty — $620.00 3 Year Labor Warranty — $409.00 2 Year Labor Warranty — $349.00 1 Year Labor Warranty — $263.00

0% Interest — for orders over $3000
No Credit Needed — Offered at checkout
7 night Luxury Resort Stay — For orders over $3000

What's Included

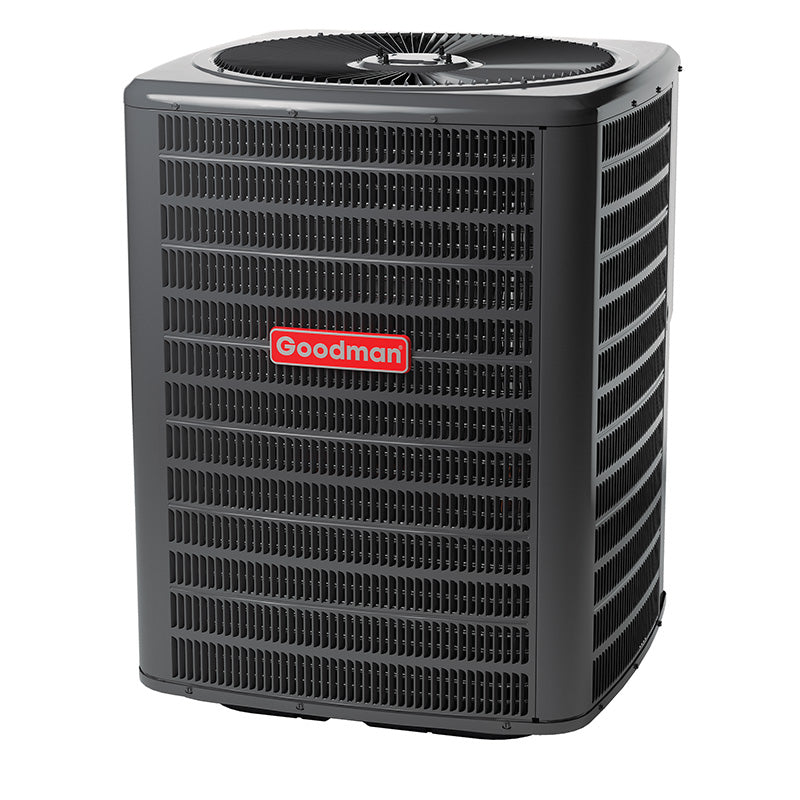

Goodman 1.5 Ton Up To 16.5 SEER2 R32 High-Efficiency Cooling Only Condenser

Model Number

GLXS5BA1810

Dimensions

26" W x 26" D x 27" H

Documents

GLXS5B Specifications

Warranty

Parts: 10 years

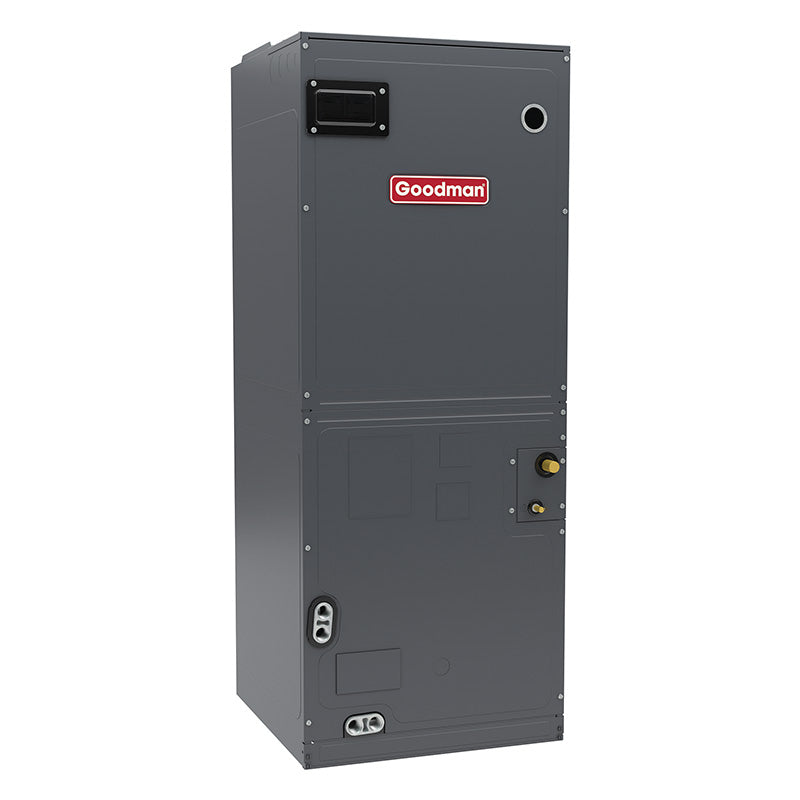

Goodman 2.5 Ton R32 Multi-Position ECM-Based Air Handler With Internal TXV

Model Number

AMST30BU1300

Dimensions

17-9/16" W x 21" D x 53-7/16" H

Documents

AMST R32 Specifications

Limited Warranty

Parts: 10 years

AHRI

215379951

Outdoor Unit Details

GLXS5B Overview

Standard Features

High-Efficiency Scroll Compressor
Factory-installed filter drier
Fully charged for 15' of tubing length
5mm diameter copper tube/ enhanced aluminum fin coil
Factory-installed filter drier
Sweat connection service valves with easy access to gauge ports
Enclosed contactor
High-pressure switch
Ground lug connection
Capacitors with extended life
AHRI Certified
ETL Listed

Cabinet Features

Removable grille-style top design compliant with UL 60335-2-40
Venturi for increased velocity of airflow
Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
Wire fan discharge grille
Steel louver coil guard
Top and side maintenance access
Single-panel access to controls with space provided for field-installed accessories
When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Indoor Unit Details

AMST R32 Overview

Features

Internal factory-installed thermal expansion valves for cooling and heat pump applications
Direct drive, multi-speed ECM blower motor
All-aluminum evaporator coil
Coil mounting track for quick repositioning
Optimized for use with R-32 refrigerant
Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
AHRI certified; ETL listed
UL 60335 2-40 Compliant
Factory installed R32 sensor designed for lifespan of coil
Rigid SmartFrame^™ cabinet
Horizontal or vertical configuration capabilities
21" depth for easier attic access
DecaBDE-free thermoplastic drain pan with secondary drain connections
Screw-less sides and back helps to reduce condensation when installed in humid locations
Foil-faced insulation covers the internal casing to reduce cabinet condensation
Galvanized, leather grain-embossed finish
Glue-less cabinet insulation retention
Tool-less filter access
Field Installed 3 kW – 25 kW electric heater kits available
