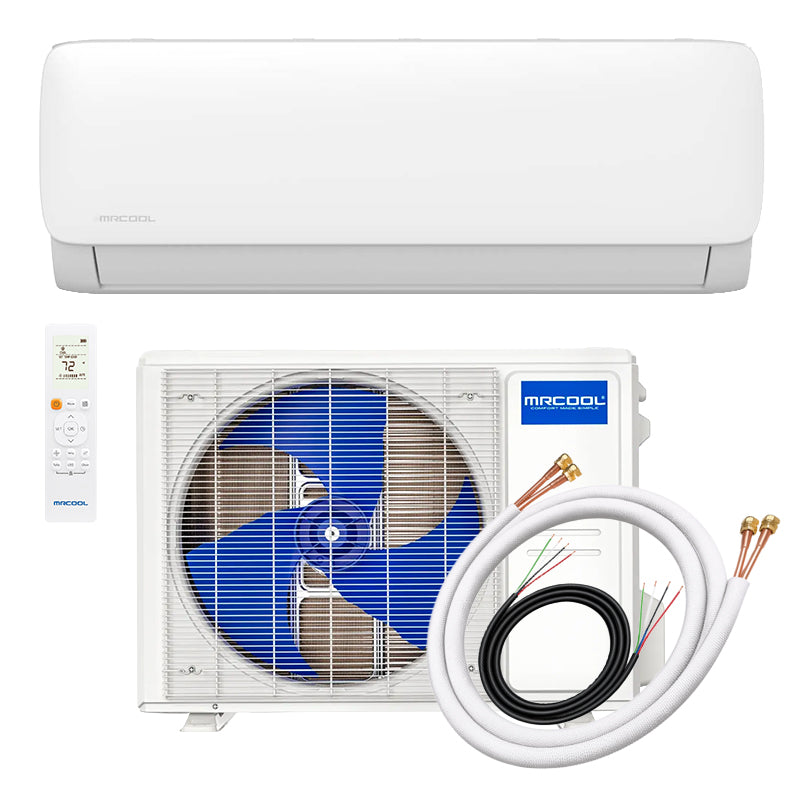

MrCool DIY Easy Pro mini-split heat pump system with condenser

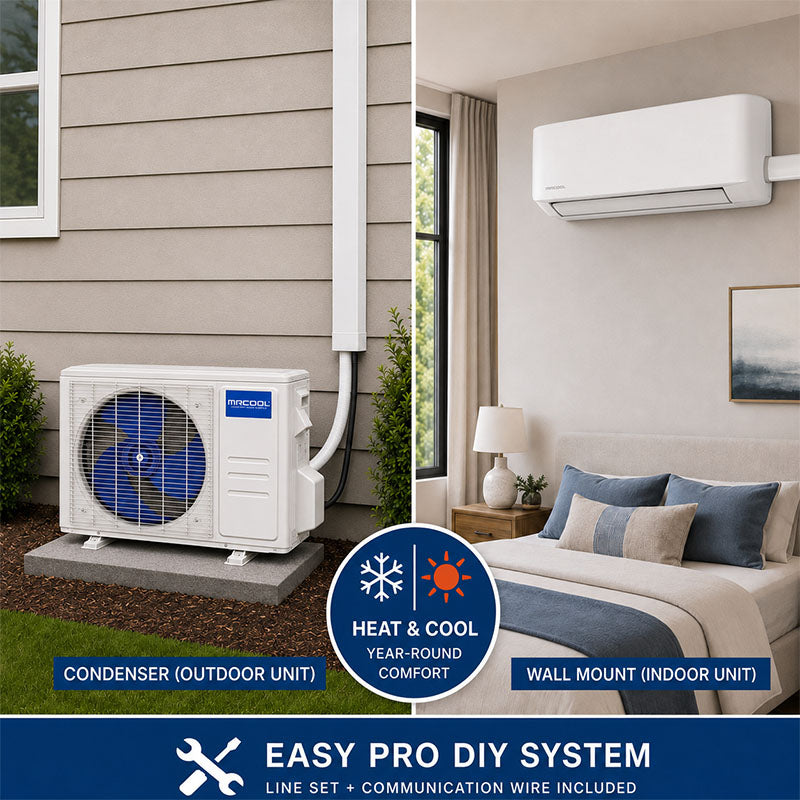

MrCool DIY Easy Pro mini-split system showing the outdoor condenser and bedroom wall-mounted air handler for year-round heating and coolin

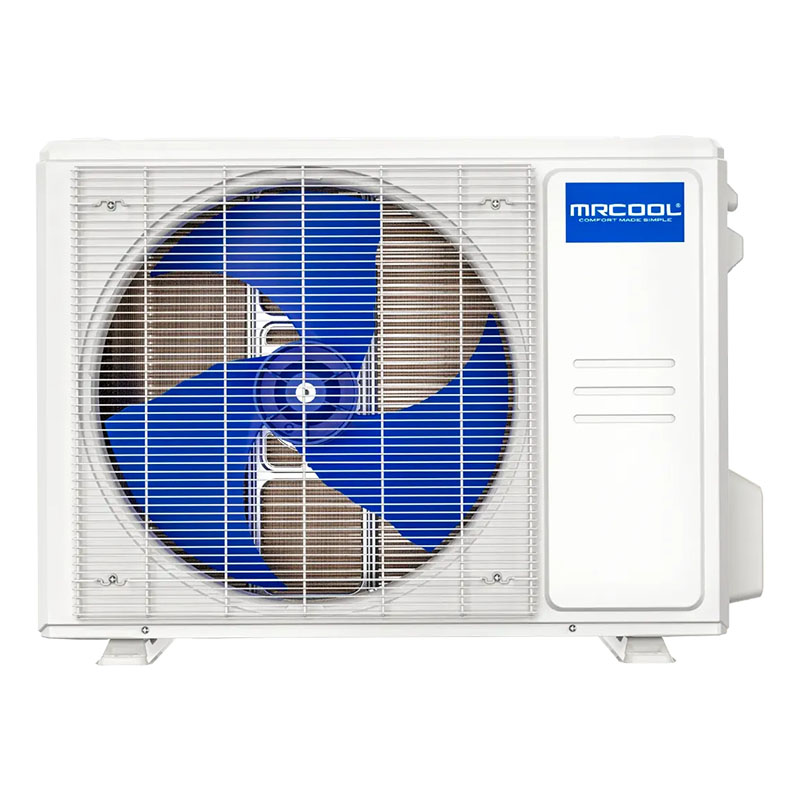

MrCool DIY Easy Pro mini-split heat pump outdoor condenser

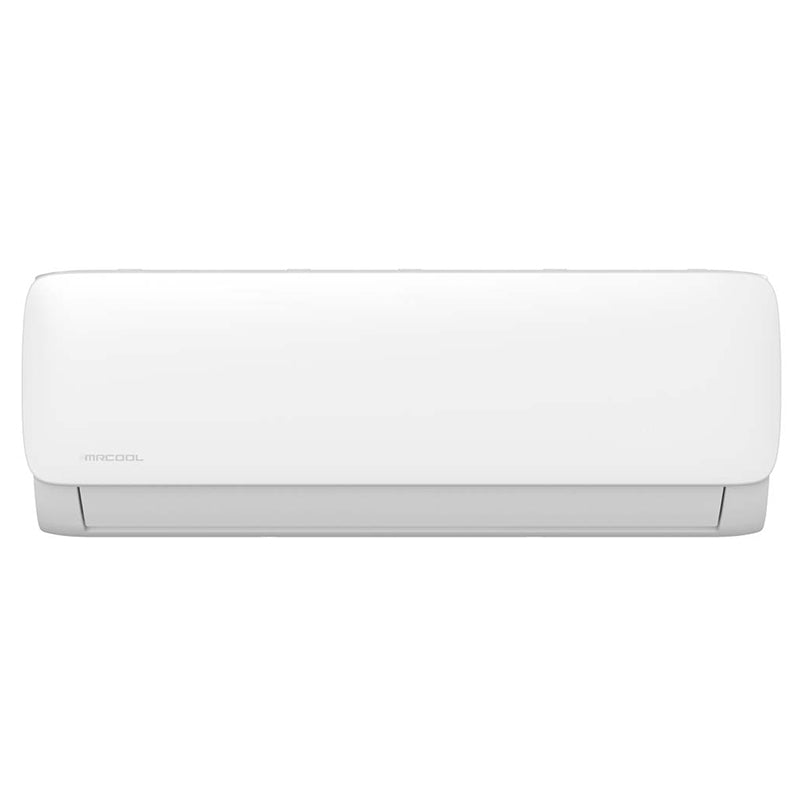

MrCool DIY Easy Pro mini-split heat pump wall-mounted indoor air handler

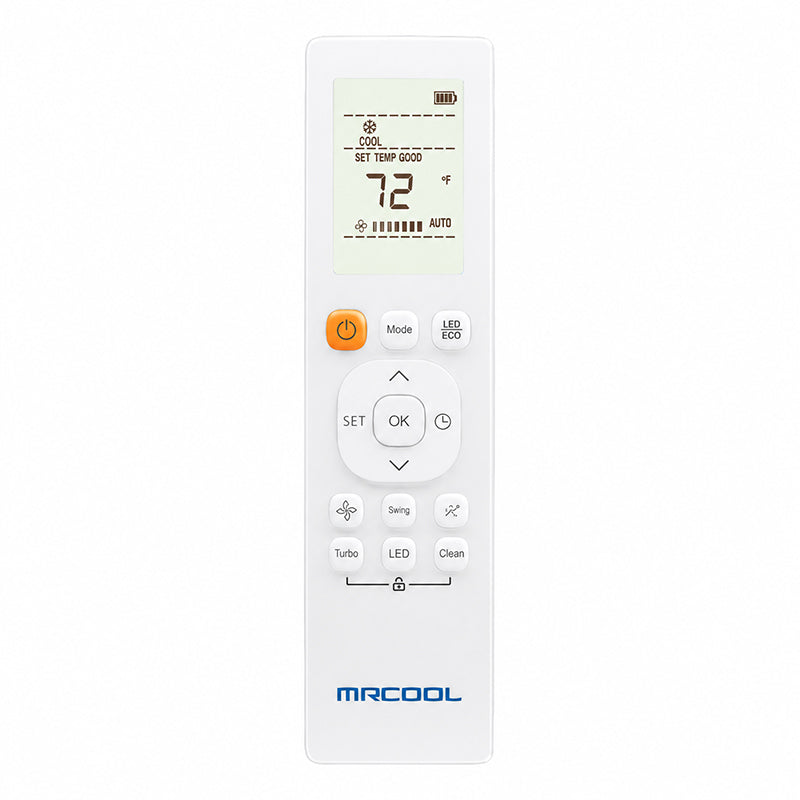

Wireless remote controller for MrCool DIY Easy Pro wall-mounted air handler

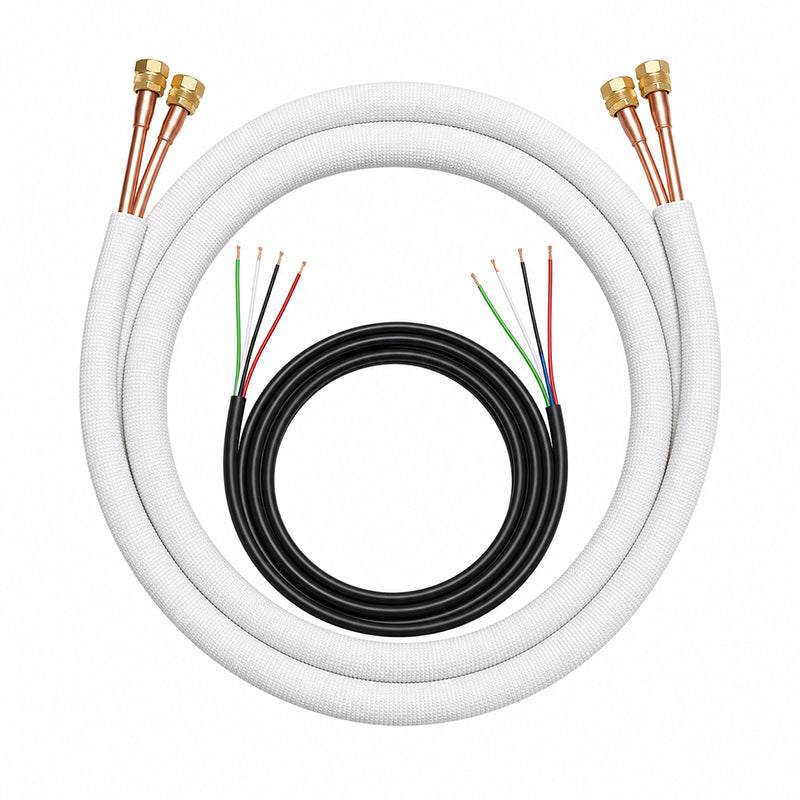

MrCool DIY Easy Pro insulated refrigerant line set with communication wire

MrCool DIY Easy Pro 24,000 BTU Mini-Split Heat Pump Wall-Mounted System with 11.5 Ft. Installation Kit - 18.9 SEER2, Single-Zone, 230V R454B

Name: MrCool DIY Easy Pro 24,000 BTU Mini-Split Heat Pump Wall-Mounted System with 11.5 Ft. Installation Kit - 18.9 SEER2, Single-Zone, 230V R454B
Brand: AC Direct
SKU: 9140
Availability: InStock

SKU: 9140

UPC: 840433620068

Today’s Price $2,109.00

Sizing help

Included

2 Items

Outdoor Unit

1 × MrCool DIY Easy Pro 24,000 BTU Mini-Split Heat Pump Condenser - 230V, R454B (EZPRO-24-HP-C-23011DE-O)
$1,391.94
$1,391.94
Indoor Unit

1 × MrCool DIY Easy Pro 24,000 BTU Mini-Split Heat Pump Wall-Mounted Air Handler - 230V, R454B (EZPRO-24-HP-WMAH-230DE-O)
$717.06
$717.06

0% Interest — for orders over $3000
No Credit Needed — Offered at checkout
7 night Luxury Resort Stay — For orders over $3000

What's Included

MrCool DIY Easy Pro 24,000 BTU Mini-Split Heat Pump Condenser - 230V, R454B

Model Number

EZPRO-24-HP-C-23011DE-O

Dimensions

35.04" W x 13.46" D x 26.5" H

Documents

EZPRO-24-HP-C-23011DE-O Specifications

Warranty

5 Year Compressor | 3 Year Parts

MrCool DIY Easy Pro 24,000 BTU Mini-Split Heat Pump Wall-Mounted Air Handler - 230V, R454B

Model Number

EZPRO-24-HP-WMAH-230DE-O

Dimensions

42.6" W x 9.21" D x 13.27" H

Documents

EZPRO-24-HP-WMAH-230DE-O Specifications

Warranty

3 Year Parts

Controller

Wireless Controller Included

AHRI Number

217678025

Included Installation Kit

11.5 ft. pre-charged Quick Connect line set
Communication wire included

Product Details

Premium DIY Mini-Split Heat Pump System for Large Residential Spaces

Complete matched ductless heating and cooling system with smart controls and energy-efficient inverter technology.

The MRCOOL DIY Easy Pro 24,000 BTU Mini-Split Heat Pump System includes a matched wall-mounted indoor air handler and outdoor heat pump condenser designed to deliver powerful heating and cooling for large living rooms, open-concept homes, workshops, and light commercial spaces. Utilizing variable-speed DC inverter technology and R-454B refrigerant, this complete system provides dependable year-round comfort while helping reduce operating costs.

Compatible with factory pre-charged Quick Connect® line sets, this system is designed to simplify installation when installed according to MRCOOL's instructions. The indoor air handler offers built-in WiFi, Follow Me® temperature sensing, quiet operation, and washable filtration, while the outdoor condenser features Gold Fin® corrosion protection and durable construction for dependable long-term performance in a variety of outdoor conditions.

Features & Benefits

Complete matched 24,000 BTU mini-split heat pump system
Includes compatible wall-mounted indoor air handler and outdoor condenser
230V electrical configuration
Designed for R-454B refrigerant
Variable-speed DC inverter technology for efficient operation
Compatible with factory pre-charged Quick Connect® line sets
Designed to simplify installation using approved MRCOOL accessories
Built-in WiFi with MRCOOL Comfort App compatibility
Follow Me® personalized comfort control
Washable air filter for simple maintenance
Gold Fin® corrosion-resistant outdoor coil
Quiet indoor and outdoor performance
Provides dependable heating and cooling from one matched system
Ideal for large living areas, open floor plans, workshops, and light commercial applications
