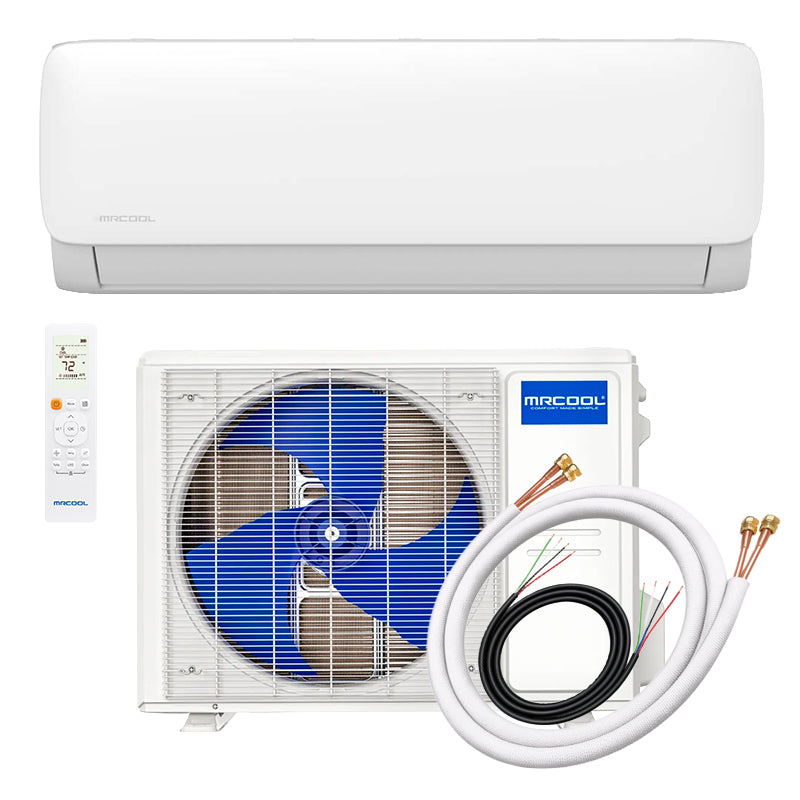

MrCool DIY Easy Pro mini-split heat pump system with condenser

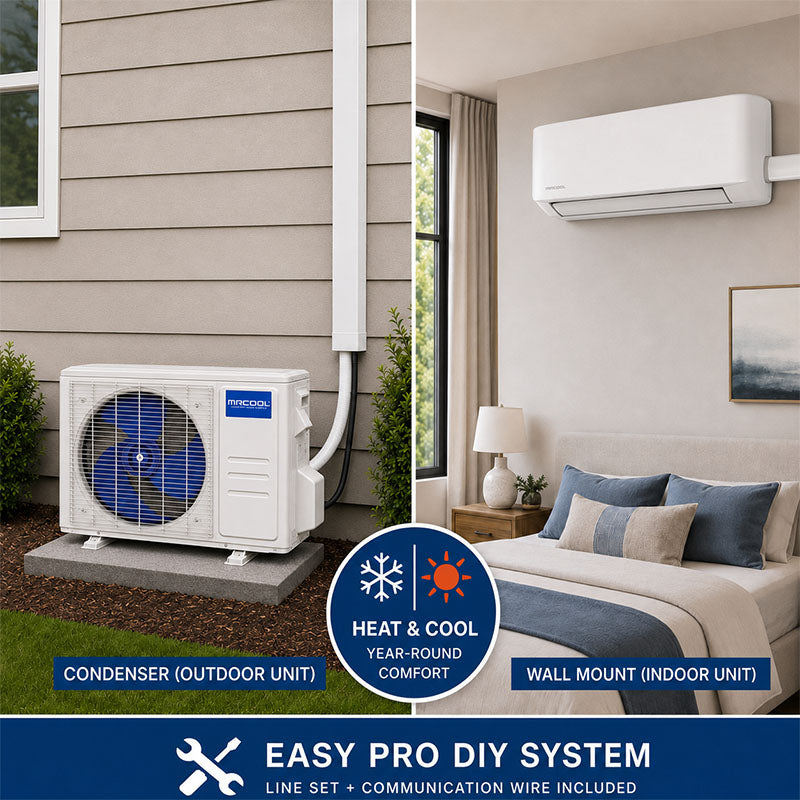

MrCool DIY Easy Pro mini-split system showing the outdoor condenser and bedroom wall-mounted air handler for year-round heating and coolin

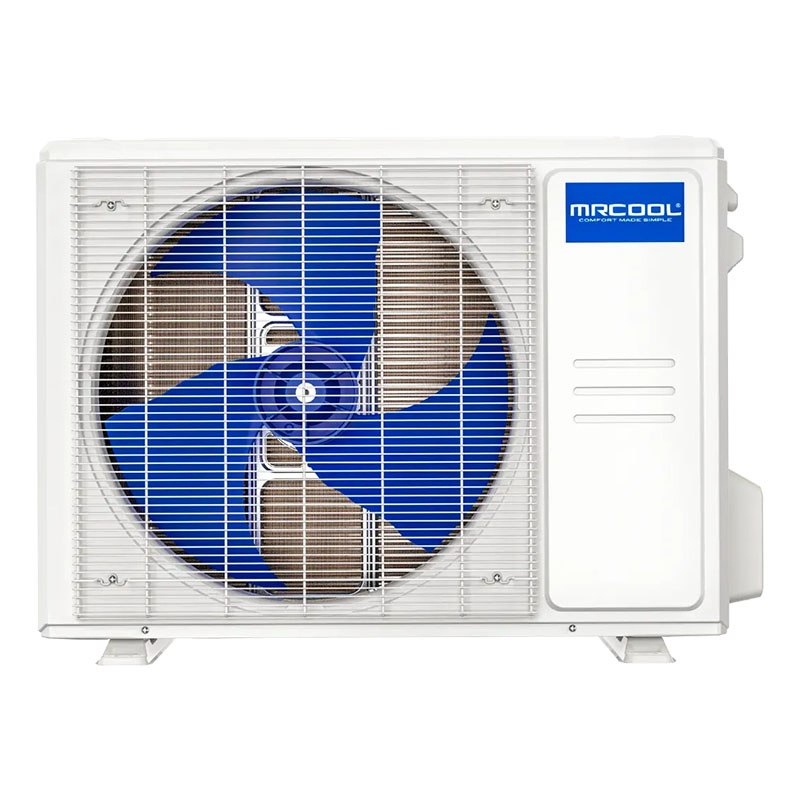

MrCool DIY Easy Pro mini-split heat pump outdoor condenser

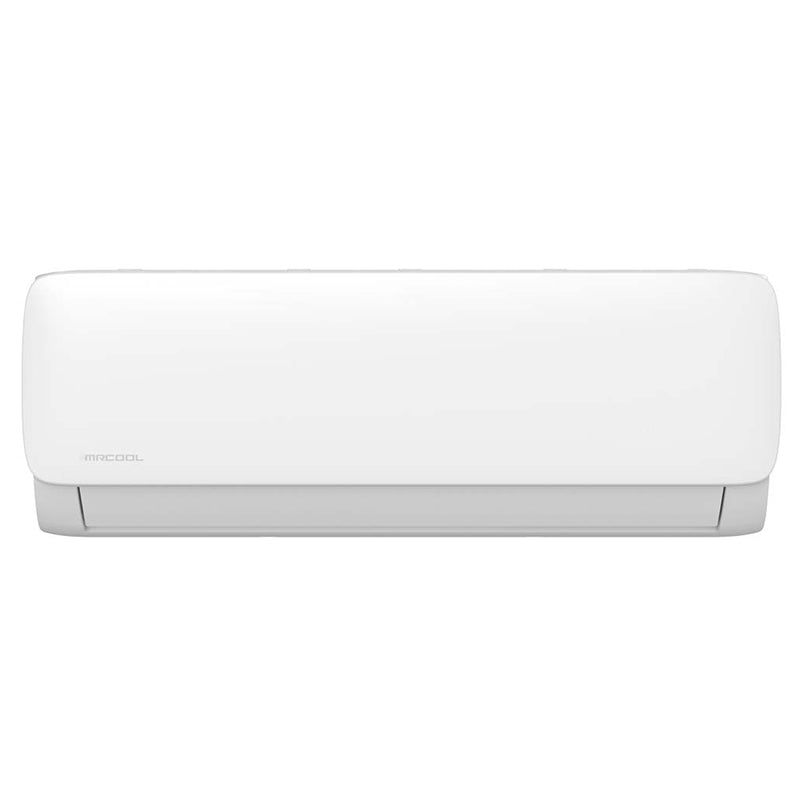

MrCool DIY Easy Pro mini-split heat pump wall-mounted indoor air handler

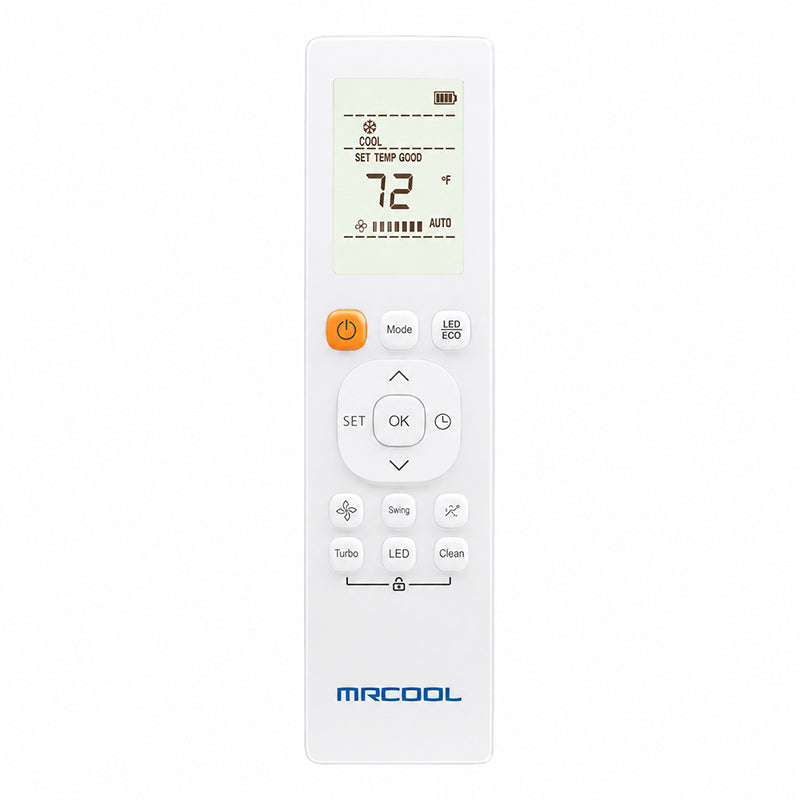

Wireless remote controller for MrCool DIY Easy Pro wall-mounted air handler

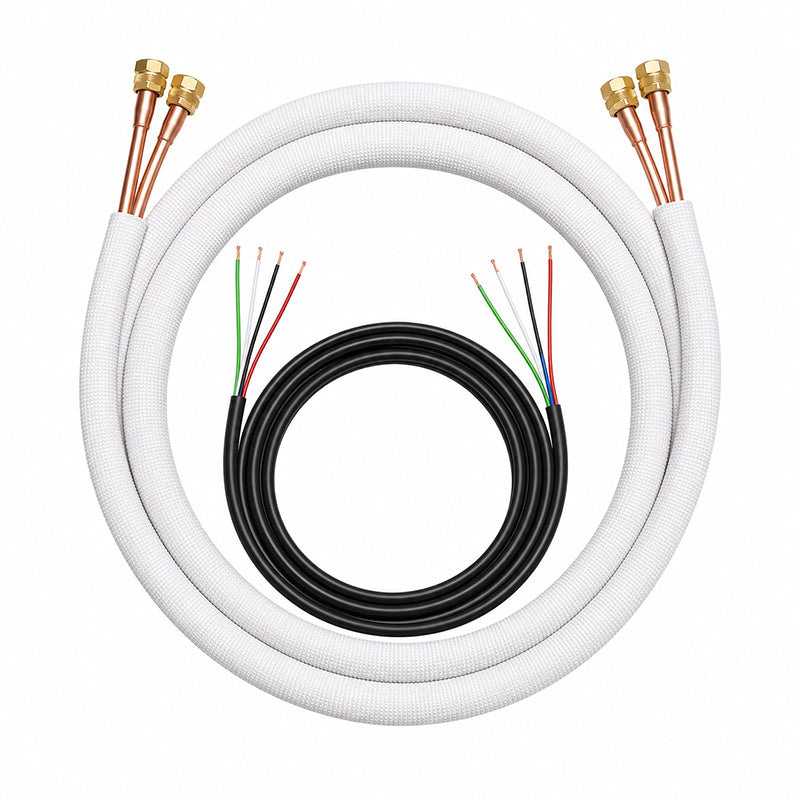

MrCool DIY Easy Pro insulated refrigerant line set with communication wire

MrCool DIY Easy Pro 9,000 BTU Mini-Split Heat Pump Wall-Mounted System with 11.5 Ft. Installation Kit - 20.2 SEER2, Single-Zone, 115V R454B

Name: MrCool DIY Easy Pro 9,000 BTU Mini-Split Heat Pump Wall-Mounted System with 11.5 Ft. Installation Kit - 20.2 SEER2, Single-Zone, 115V R454B
Brand: AC Direct
SKU: 9137
Availability: InStock

SKU: 9137

UPC: 840255595964

Today’s Price $1,487.00

Sizing help

Included

2 Items

Outdoor Unit

1 × MrCool DIY Easy Pro 9,000 BTU Mini-Split Heat Pump Condenser - 115V, R454B (EZPRO-09-HP-C-11511DE-O)
$996.29
$996.29
Indoor Unit

1 × MrCool DIY Easy Pro 9,000 BTU Mini-Split Heat Pump Wall-Mounted Air Handler - 115V, R454B (EZPRO-09-HP-WMAH-115DE-O)
$490.71
$490.71

0% Interest — for orders over $3000
No Credit Needed — Offered at checkout
7 night Luxury Resort Stay — For orders over $3000

What's Included

MrCool DIY Easy Pro 9,000 BTU Mini-Split Heat Pump Condenser - 115V, R454B

Model Number

EZPRO-09-HP-C-11511DE-O

Dimensions

28.35" W x 10.63" D x 19.49" H

Documents

EZPRO-09-HP-C-11511DE-O Specifications

Warranty

5 Year Compressor | 3 Year Parts

MrCool DIY Easy Pro 9,000 BTU Mini-Split Heat Pump Wall-Mounted Air Handler - 115V, R454B

Model Number

EZPRO-09-HP-WMAH-115DE-O

Dimensions

28.7" W x 7.87" D x 11.5" H

Documents

EZPRO-09-HP-WMAH-115DE-O Specifications

Warranty

3 Year Parts

Controller

Wireless Controller Included

AHRI Number

217678020

Included Installation Kit

11.5 ft. pre-charged Quick Connect line set
Communication wire included

Product Details

Complete DIY Mini-Split Heat Pump System for Efficient Home Comfort

Matched indoor and outdoor equipment engineered for simple installation and dependable year-round heating and cooling.

The MRCOOL DIY Easy Pro 9,000 BTU Mini-Split Heat Pump System combines a matched wall-mounted indoor air handler and outdoor heat pump condenser to deliver efficient heating and cooling for bedrooms, home offices, garages, and other smaller residential spaces. Designed to work together as a complete system, the indoor and outdoor units utilize variable-speed DC inverter technology and environmentally friendly R-454B refrigerant to provide consistent comfort while helping reduce energy consumption throughout the year.

Designed with homeowners in mind, this system supports installation using compatible factory pre-charged Quick Connect® line sets, helping simplify installation when installed according to MRCOOL's instructions. The indoor air handler features built-in WiFi, Follow Me® temperature sensing, quiet operation, and a washable air filter, while the outdoor condenser incorporates a Gold Fin® corrosion-resistant coil, dependable low-ambient heating performance, and durable construction for long-lasting reliability.

Features & Benefits

Complete matched 9,000 BTU mini-split heat pump system
Includes compatible wall-mounted indoor air handler and outdoor condenser
115V electrical configuration
Designed for R-454B refrigerant
Variable-speed DC inverter technology for improved comfort and efficiency
Compatible with factory pre-charged Quick Connect® line sets
Designed to simplify installation using approved MRCOOL accessories
Built-in WiFi with MRCOOL Comfort App compatibility
Follow Me® remote temperature sensing
Washable air filter for convenient maintenance
Gold Fin® corrosion-resistant outdoor coil
Quiet indoor and outdoor operation
Heating and cooling from one energy-efficient system
Ideal for bedrooms, home offices, garages, and additions
